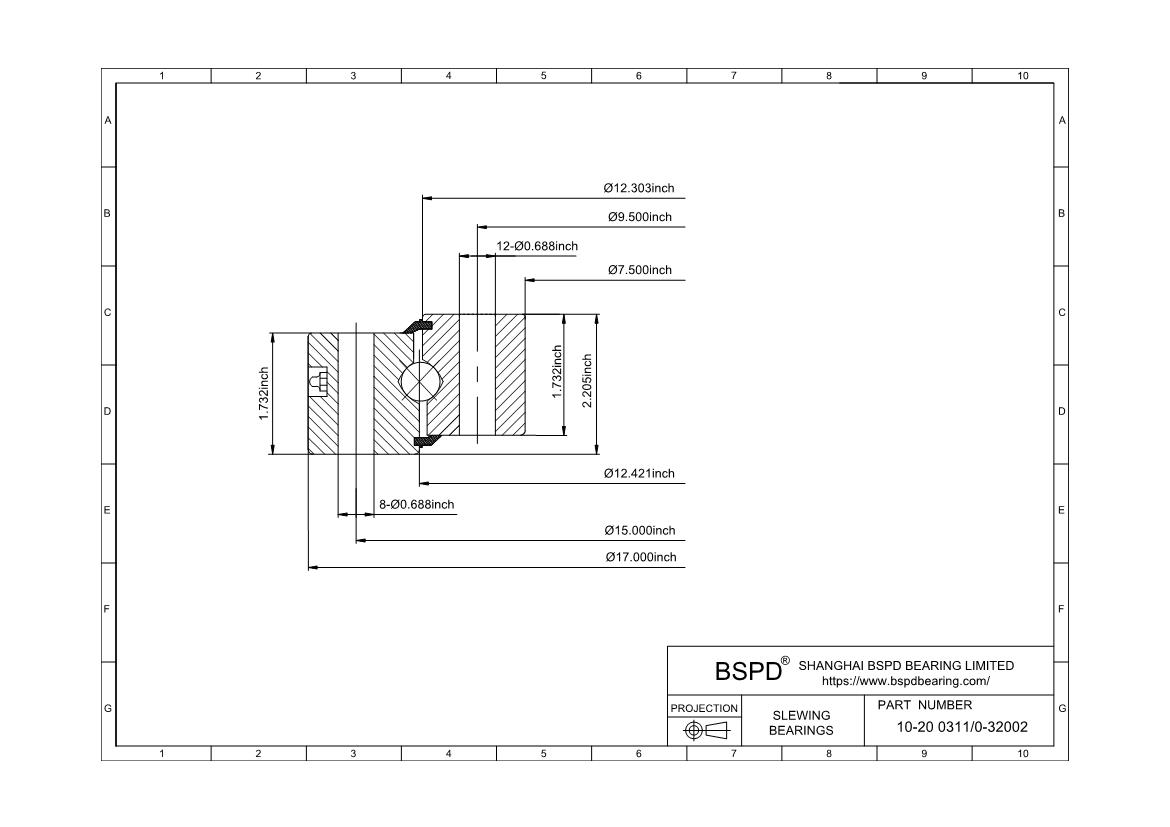

10-20 0311/0-32002 IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: 7.5; Outer Diameter: 17.0; Width (Thickness): ;

10-20 0311/0-32002
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number 10-20 0311/0-32002
Gear Untoothed
Geometry
Weight(G) 46
Outside diameter outer ring(Da) 17
Inside diameter inner ring(di) 7.5
inside diameter outer ring(Di) 12.421
Outside diameter inner ring (da) 12.303
Outside bole-hole circle diameter (La)
intside bole-hole circle diameter (Li)
Mounting Holes
Pitch circle diameter Outer Ring (La) 15
Number Holes in Outer Ring (na) 8
Pitch circle diameter Inner Ring (Li) 9.5
Number Holes in Inner Ring (ni) 12
Gearing and Tooth Forces
Pitch Circle Diameter (do)
Diametral Pitch (Pd)
Number of Teeth (Z2)
Permissible tooth force (fz norm)(lbs)
Maximum perissible tooth force (fz max)(lbs)
Load Rating
Static Co rad(lbs) 43163
Static Co Max(lbs) 100714
Dynamic C rad(lbs) 31473
Dynamic C Max(lbs) 31473
10-20 0311/0-32002
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings 10-20 0311/0-32002 ? IMO Slewing Rings & Slewing drives Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
