16008 Deep Groove Ball Bearings

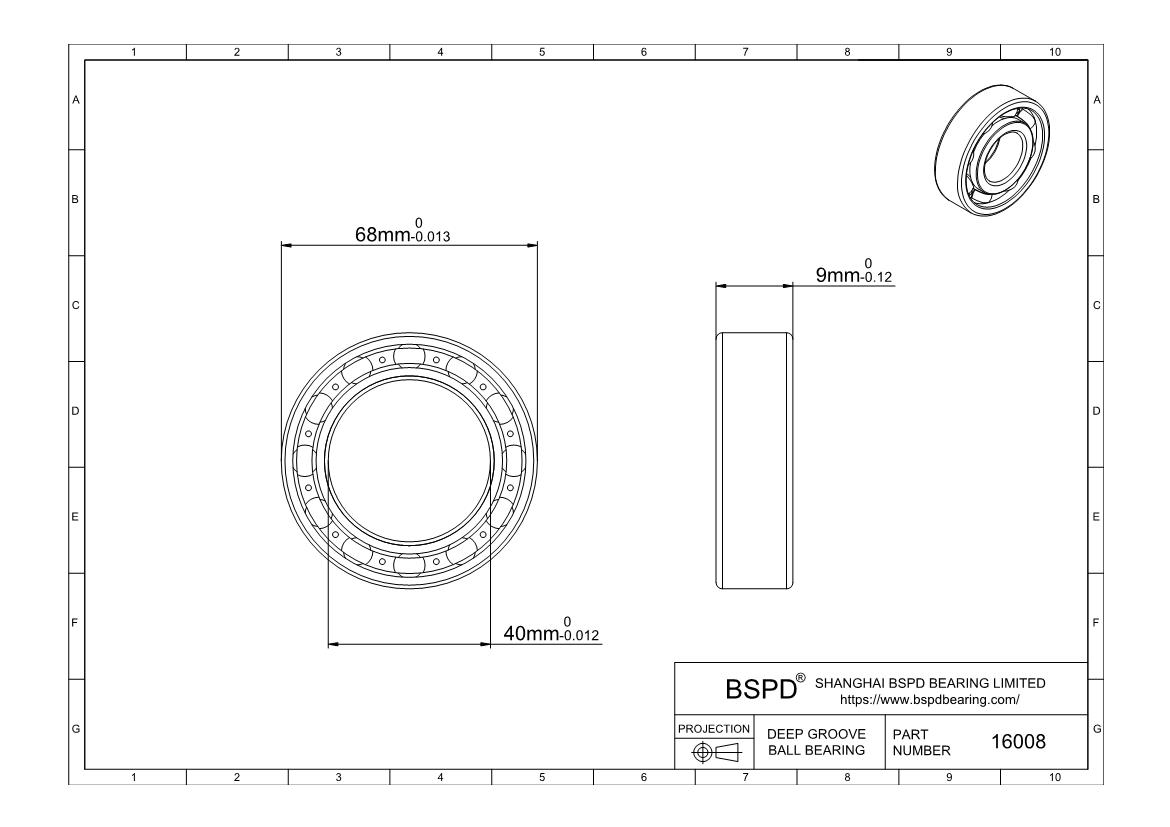

Dimensions: Bore (Inner) Diameter: 40 mm; Outer Diameter: 68 mm; Width (Thickness): 9 mm;

16008
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 16008
For Shaft Diameter 40 mm
Bore Dia (d) 40 mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 68mm
Outer Dia (D) 68mm
Outer Dia Tolerance -0.013mm to 0
Width (B) 9mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 12600
Static Load Rating (Cor) (Newtons) 9700
Max Speed (Grease) (X1000 RPM) 7.4
Max Speed (Oil) (X1000 RPM)  11
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Ball Qty
Ball Dia
Weight (grams) 130
16008
