1602 Deep Groove Ball Bearings

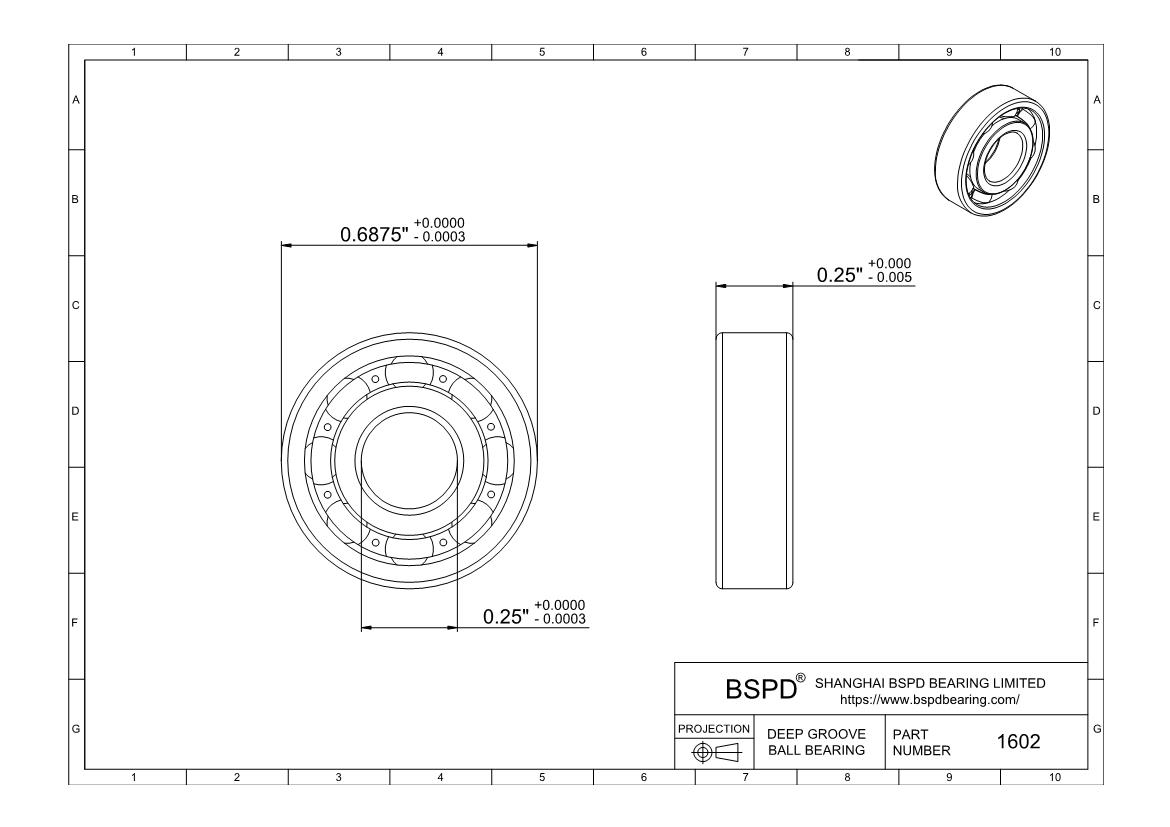

Dimensions: Bore (Inner) Diameter: 0.25"; Outer Diameter: 0.6875"; Width (Thickness): 0.2500";

1602
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 1602
For Shaft Diameter 0.25"
Bore Dia (d) 0.25" | 6.35 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 0.6875"
Outer Dia (D) 0.6875" | 17.463 mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 0.2500" | 6.35 mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (lbs) 635
Static Load Rating (Cor) (lbs) 240
Max Speed (Grease) (X1000 RPM) 5
Max Speed (Oil) (X1000 RPM)  6
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty
Ball Dia
Weight (grams) 6.3
1602
