16373001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 187.795"; Outer Diameter: 210.968"; Width (Thickness): 8.819";

16373001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16373001
Maximum Allowable Gear Tooth Load (Fz) 78,770 lbs | 351.652KN
Moment Load Rating (Crm) 32,339,000ft-lbs | 144370.536KN
Bearing Types Slewing Ring Bearing

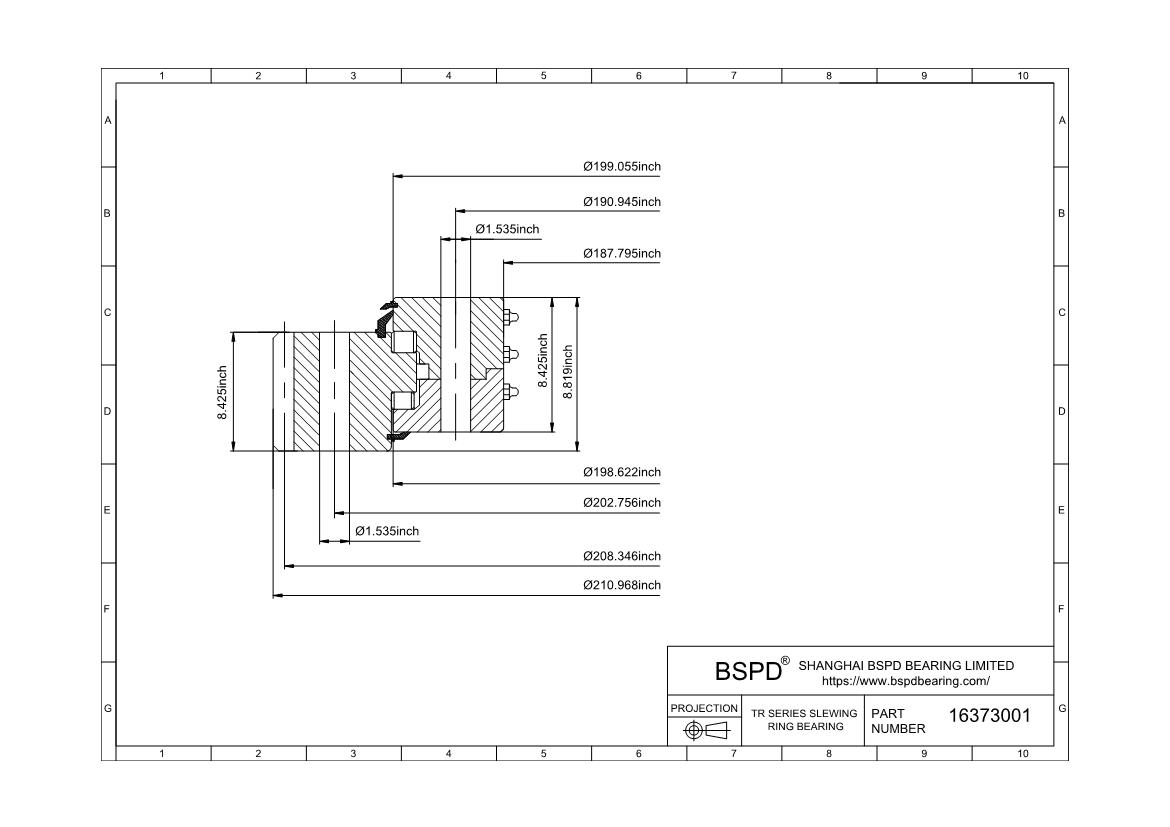

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 210.968" | 5358.59mm
Inside Diameter of Inner Ring (di) 187.795" | 4769.99mm
Height of overall bearing assembly(H) 8.819" | 224mm
Height of outer ring(Ho) 8.425" | 214mm
Height of inner ring(Hi) 8.425" | 214mm
External diameter on outer ring(Dr) 207.480" | 5269.99mm
Internal diameter on outer ring(Di) 198.622" | 5045mm
External diameter on inner ring(do) 199.055" | 5056mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 14,330lbs | 6499.945KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 202.756 " | 5150mm
Number Holes in Outer Ring (no) 120
Size of hole in outer ring(Bo) 1.535
Bolt circle in inner ring(Li) 190.945" | 4850mm
Number Holes in Inner Ring (ni) 120
Size of hole in inner ring(Bi) 1.535
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 208.346" | 5291.99mm
Gear module(M) 18
Number of Gear Teeth(z2) 294
("+" / "-" sign increases tooth thickness at D2(X2) +.85
Face Width of Gear Teeth(b2) 5.906
gear External gear
16373001
