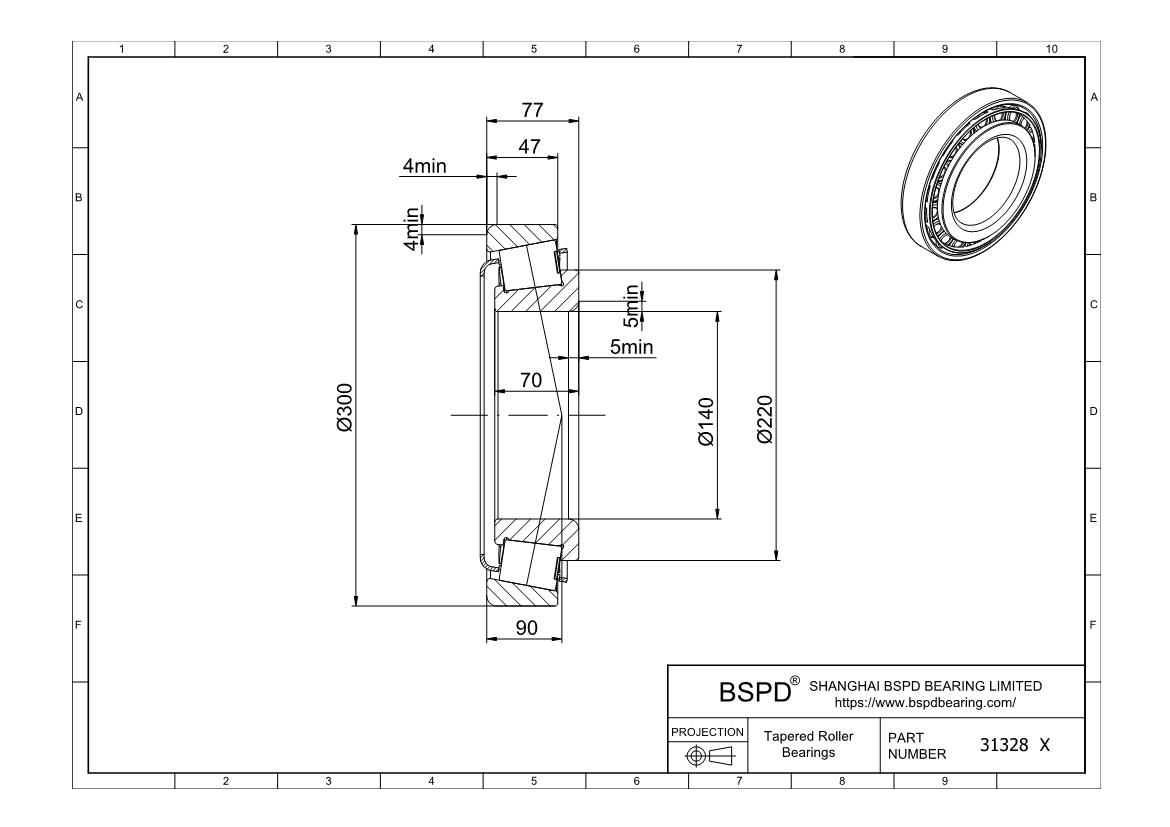

31328 X
Metric Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 300 mm； Width (Thickness): 77 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 31328 X |
| Bore diameter | 140 mm |
| Outside diameter | 300 mm |
| Total width | 77 mm |
| Shoulder diameter of inner ring | 220 mm |
| Widthof inner ring | 70 mm |
| Width of outer ring | 47 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 4 mm |
| Distance side face to pressure point (a) | 90 mm |
| Basic dynamic load rating (Cr) | 737 kn |
| Basic static load rating (Cor) | 900 kN |
| Fatigue load limit (Pu) | 90 kN |
| Reference speed | 1500 r/min |
| Limiting speed | 2200 r/min |
| Mass | 22.5 kg |
| Limiting value (e) | 0.83 |
| Axial load factor (Y) | 0.72 |
| Axial load factor (Y0) | 0.4 |
| Maximum diameter of shaft abutment (da) | 169 mm |
| Minimum diameter of shaft abutment (db) | 159 mm |
| Minimum diameter of housing abutment (Da) | 235 mm |
| Maximum diameter of housing abutment (Da) | 284 mm |
| Minimum diameter of housing abutment (Db) | 280 mm |
| Minimum width of space required in housing on large side face (C | 9 mm |
| Minimum width of space required in housing on small side face (C | 30 mm |
| Maximum Radius of shaft fillet (ra) | 5 mm |
| Maximum Radius of housing fillet (rb) | 4 mm |
