32230

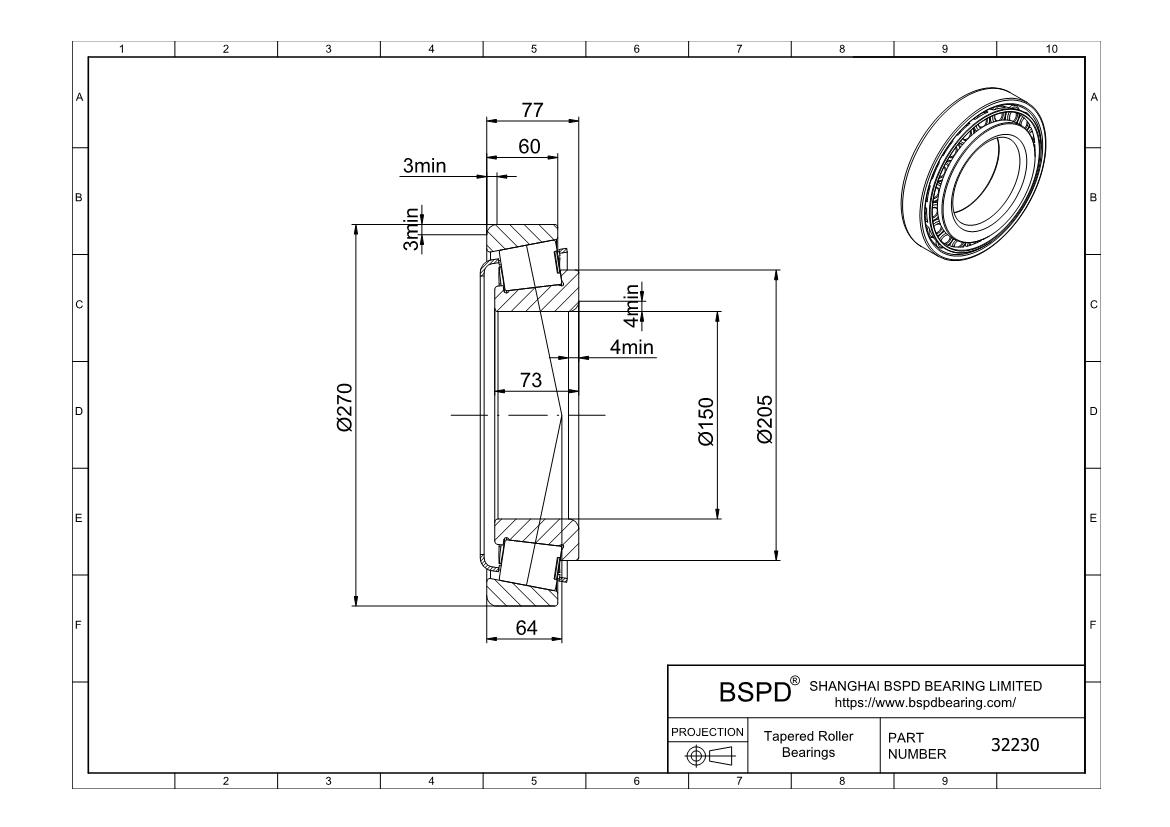

Metric Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 270 mm； Width (Thickness): 77 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 32230 |
| Bore diameter | 150 mm |
| Outside diameter | 270 mm |
| Total width | 77 mm |
| Shoulder diameter of inner ring | 205 mm |
| Widthof inner ring | 73 mm |
| Width of outer ring | 60 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 4 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3 mm |
| Distance side face to pressure point (a) | 64 mm |
| Basic dynamic load rating (Cr) | 782 kn |
| Basic static load rating (Cor) | 1140 kN |
| Fatigue load limit (Pu) | 112 kN |
| Reference speed | 1700 r/min |
| Limiting speed | 2400 r/min |
| Mass | 18 kg |
| Limiting value (e) | 0.43 |
| Axial load factor (Y) | 1.4 |
| Axial load factor (Y0) | 0.8 |
| Maximum diameter of shaft abutment (da) | 171 mm |
| Minimum diameter of shaft abutment (db) | 167 mm |
| Minimum diameter of housing abutment (Da) | 226 mm |
| Maximum diameter of housing abutment (Da) | 256 mm |
| Minimum diameter of housing abutment (Db) | 254 mm |
| Minimum width of space required in housing on large side face (C | 8 mm |
| Minimum width of space required in housing on small side face (C | 17 mm |
| Maximum Radius of shaft fillet (ra) | 4 mm |
| Maximum Radius of housing fillet (rb) | 3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 32230 ? Metric Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
