32234 Metric Single Row Tapered Roller Bearings

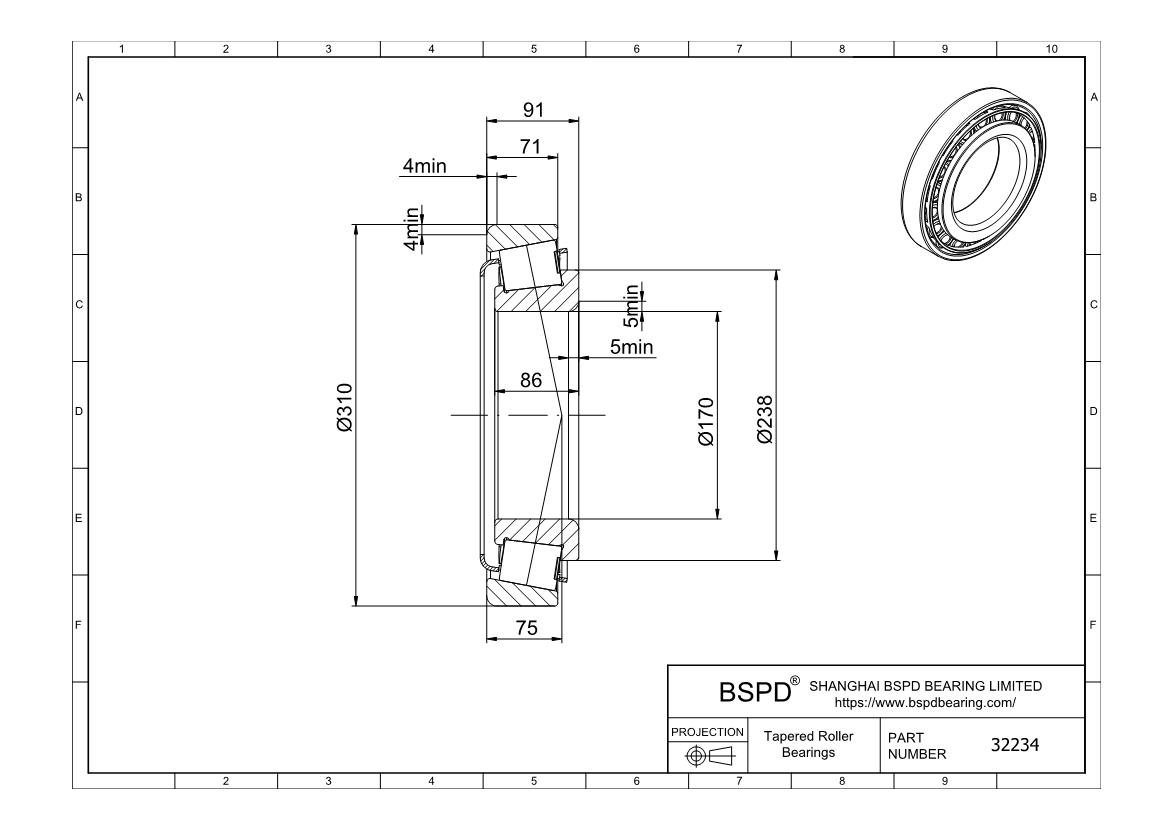

Dimensions: Bore (Inner) Diameter: 170 mm; Outer Diameter: 310 mm; Width (Thickness): 91 mm;

32234
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number32234
Bore diameter170 mm
Outside diameter310 mm
Total width91 mm
Shoulder diameter of inner ring238 mm
Widthof inner ring86 mm
Width of outer ring71 mm
Chamfer minimum dimension of inner ring (r1,2)5 mm
Chamfer minimum dimension of outer ring (r3,4)4 mm
Distance side face to pressure point (a)75 mm
Basic dynamic load rating (Cr)1075 kn
Basic static load rating (Cor)1630 kN
Fatigue load limit (Pu)150 kN
Reference speed1500 r/min
Limiting speed2000 r/min
Mass28.5 kg
Limiting value (e)0.43
Axial load factor (Y)1.4
Axial load factor (Y0)0.8
Maximum diameter of shaft abutment (da)196 mm
Minimum diameter of shaft abutment (db)189 mm
Minimum diameter of housing abutment (Da)259 mm
Maximum diameter of housing abutment (Da)293 mm
Minimum diameter of housing abutment (Db)294 mm
Minimum width of space required in housing on large side face (C10 mm
Minimum width of space required in housing on small side face (C20 mm
Maximum Radius of shaft fillet (ra)5 mm
Maximum Radius of housing fillet (rb)4 mm
32234
