32236 Metric Single Row Tapered Roller Bearings

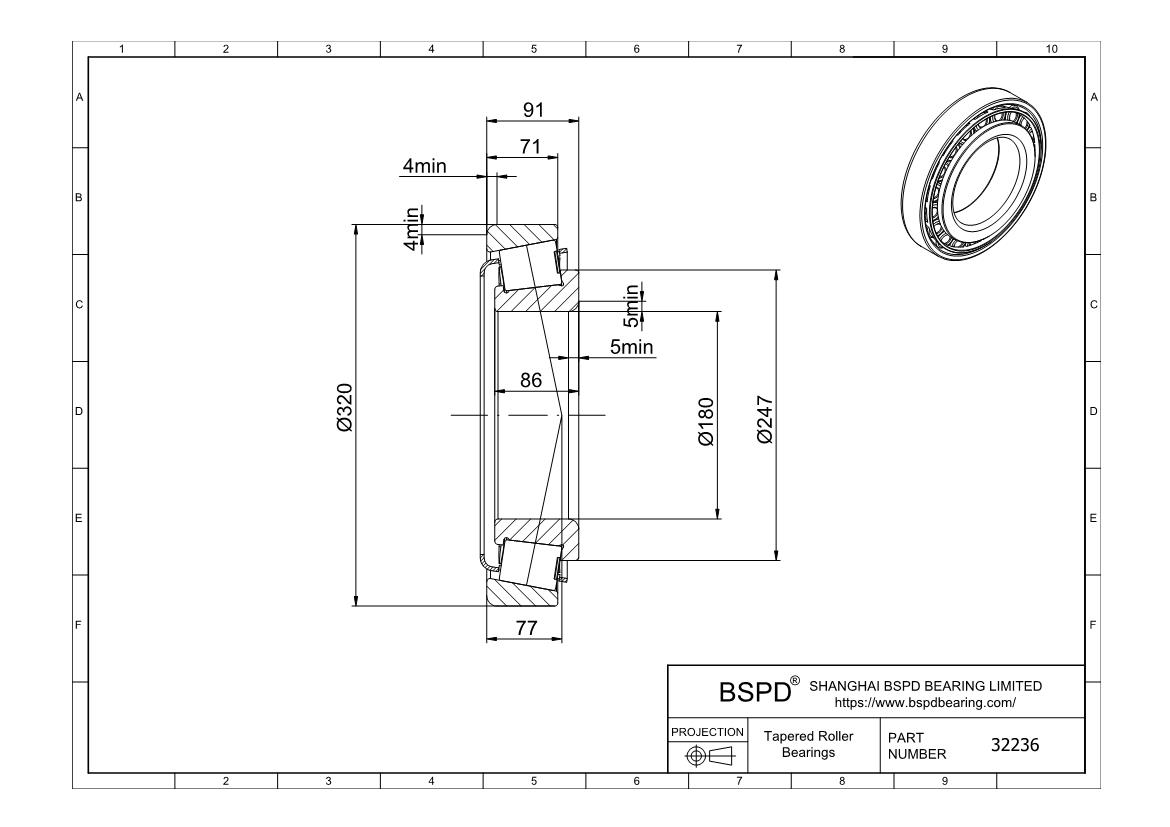

Dimensions: Bore (Inner) Diameter: 180 mm; Outer Diameter: 320 mm; Width (Thickness): 91 mm;

32236
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number32236
Bore diameter180 mm
Outside diameter320 mm
Total width91 mm
Shoulder diameter of inner ring247 mm
Widthof inner ring86 mm
Width of outer ring71 mm
Chamfer minimum dimension of inner ring (r1,2)5 mm
Chamfer minimum dimension of outer ring (r3,4)4 mm
Distance side face to pressure point (a)77 mm
Basic dynamic load rating (Cr)1069 kn
Basic static load rating (Cor)1630 kN
Fatigue load limit (Pu)150 kN
Reference speed1400 r/min
Limiting speed1900 r/min
Mass29.5 kg
Limiting value (e)0.46
Axial load factor (Y)1.3
Axial load factor (Y0)0.7
Maximum diameter of shaft abutment (da)205 mm
Minimum diameter of shaft abutment (db)199 mm
Minimum diameter of housing abutment (Da)267 mm
Maximum diameter of housing abutment (Da)303 mm
Minimum diameter of housing abutment (Db)303 mm
Minimum width of space required in housing on large side face (C10 mm
Minimum width of space required in housing on small side face (C20 mm
Maximum Radius of shaft fillet (ra)5 mm
Maximum Radius of housing fillet (rb)4 mm
32236
