33013

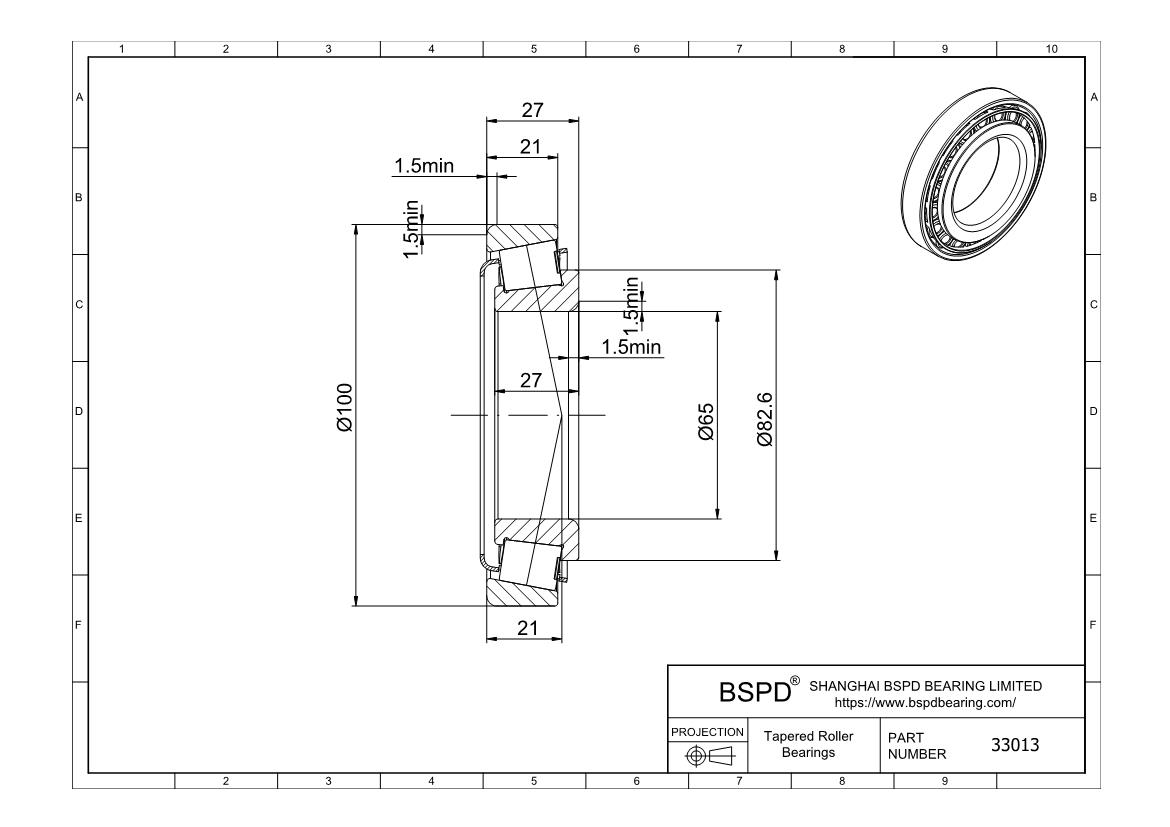

Metric Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 65 mm； Outer Diameter: 100 mm； Width (Thickness): 27 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 33013 |
| Bore diameter | 65 mm |
| Outside diameter | 100 mm |
| Total width | 27 mm |
| Shoulder diameter of inner ring | 82.6 mm |
| Widthof inner ring | 27 mm |
| Width of outer ring | 21 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 1.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1.5 mm |
| Distance side face to pressure point (a) | 21 mm |
| Basic dynamic load rating (Cr) | 119 kn |
| Basic static load rating (Cor) | 153 kN |
| Fatigue load limit (Pu) | 17.3 kN |
| Reference speed | 5000 r/min |
| Limiting speed | 6300 r/min |
| Mass | 0.75 kg |
| Limiting value (e) | 0.35 |
| Axial load factor (Y) | 1.7 |
| Axial load factor (Y0) | 0.9 |
| Maximum diameter of shaft abutment (da) | 72 mm |
| Minimum diameter of shaft abutment (db) | 74 mm |
| Minimum diameter of housing abutment (Da) | 89 mm |
| Maximum diameter of housing abutment (Da) | 92 mm |
| Minimum diameter of housing abutment (Db) | 96 mm |
| Minimum width of space required in housing on large side face (C | 5 mm |
| Minimum width of space required in housing on small side face (C | 6 mm |
| Maximum Radius of shaft fillet (ra) | 1.5 mm |
| Maximum Radius of housing fillet (rb) | 1.5 mm |
