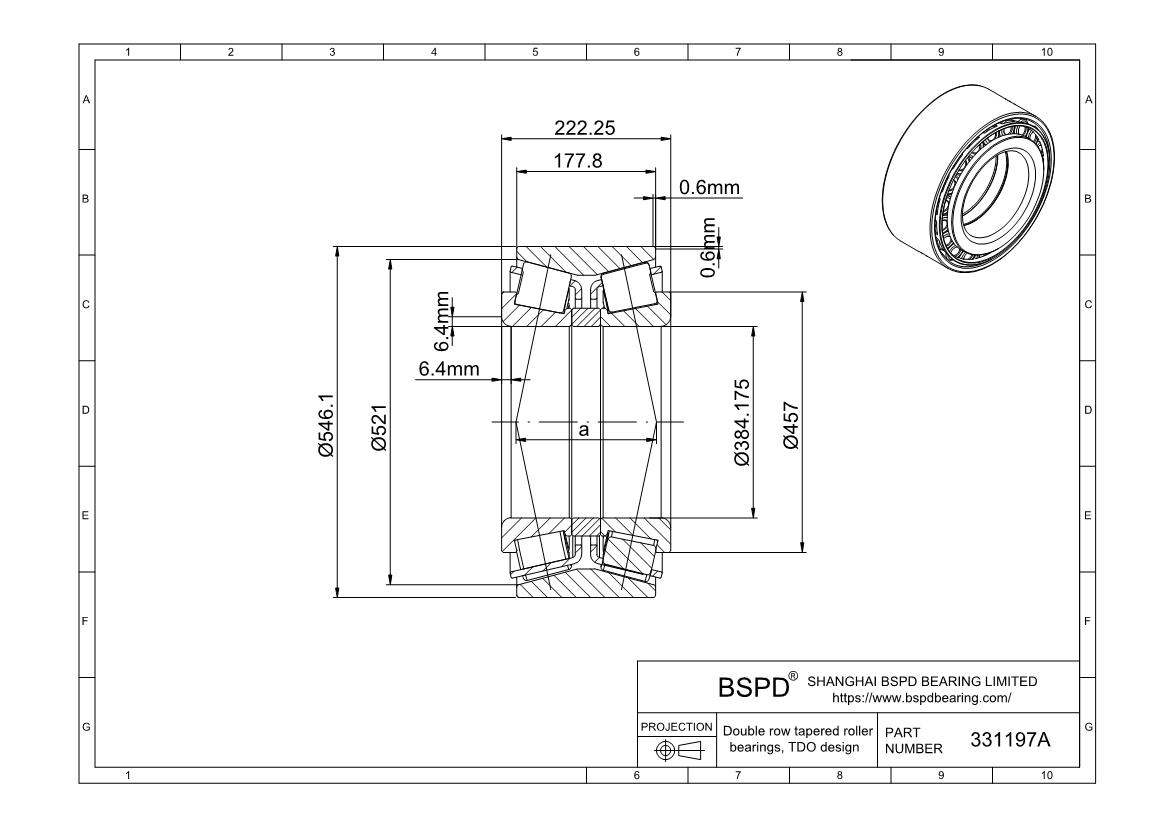

331197A Double row tapered roller bearings& TDO design
Dimensions: Bore (Inner) Diameter: 384.175 mm; Outer Diameter: 546.1 mm; Width (Thickness): 222.25 mm;

331197A
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number331197A
Bore diameter384.175 mm
Outside diameter546.1 mm
Total width222.25 mm
Shoulder diameter of inner ring457 mm
Width of outer ring177.8 mm
Chamfer minimum dimension of inner ring (r1,2)6.4 mm
Basic dynamic load rating (Cr)3724 kn
Basic static load rating (Cor)8300 kN
Fatigue load limit (Pu)640 kN
Mass161 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)915
Comparative axial load rating (CFA)301
Thrust factor (K)1.76
331197A
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 331197A ? Double row tapered roller bearings& TDO design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
