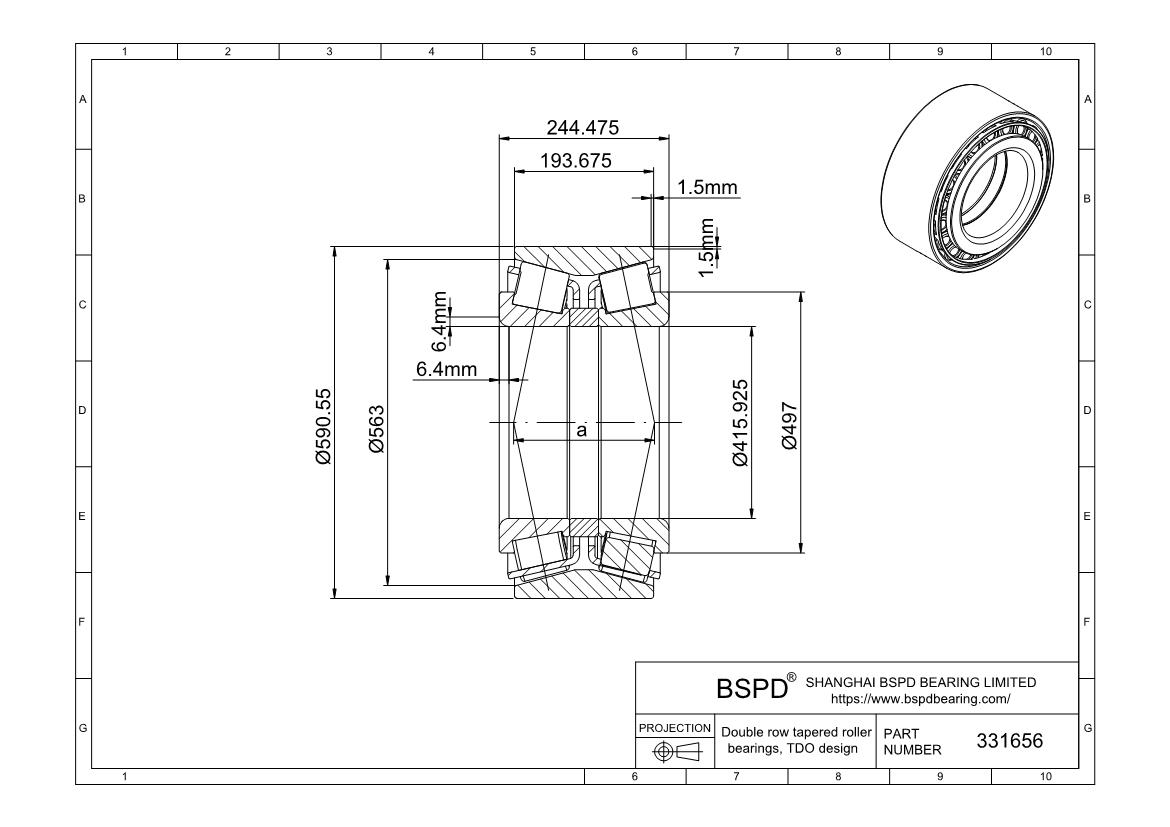

331656 Double row tapered roller bearings& TDO design
Dimensions: Bore (Inner) Diameter: 415.925 mm； Outer Diameter: 590.55 mm； Width (Thickness): 244.475 mm;

331656
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number331656
Bore diameter415.925 mm
Outside diameter590.55 mm
Total width244.475 mm
Shoulder diameter of inner ring497 mm
Width of outer ring193.675 mm
Chamfer minimum dimension of inner ring (r1,2)6.4 mm
Basic dynamic load rating (Cr)4175 kn
Basic static load rating (Cor)9650 kN
Fatigue load limit (Pu)720 kN
Mass205 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)1040
Comparative axial load rating (CFA)332
Thrust factor (K)1.76
331656
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 331656 ? Double row tapered roller bearings& TDO design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
