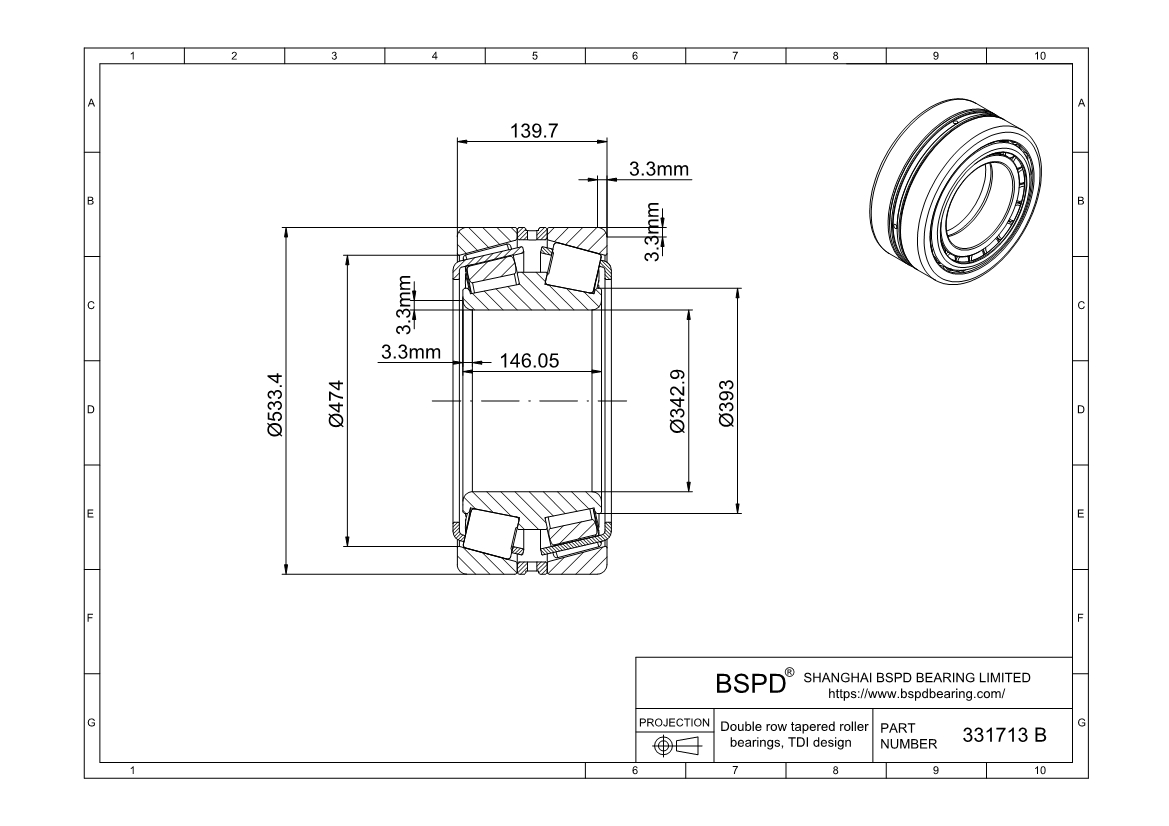

331713 B Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 342.9 mm; Outer Diameter: 533.4 mm; Width (Thickness): 139.7 mm;

331713 B
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number331713 B
Bore diameter342.9 mm
Outside diameter533.4 mm
Total width139.7 mm
Shoulder diameter of inner ring393 mm
Width of outer ring146.05 mm
Chamfer minimum dimension of inner ring (r1,2)3.3 mm
Chamfer minimum dimension of outer ring (r3,4)3.3 mm
Basic dynamic load rating (Cr)1373 kn
Basic static load rating (Cor)4400 kN
Fatigue load limit (Pu)365 kN
Mass115 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)620
Comparative axial load rating (CFA)202
331713 B
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 331713 B ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
