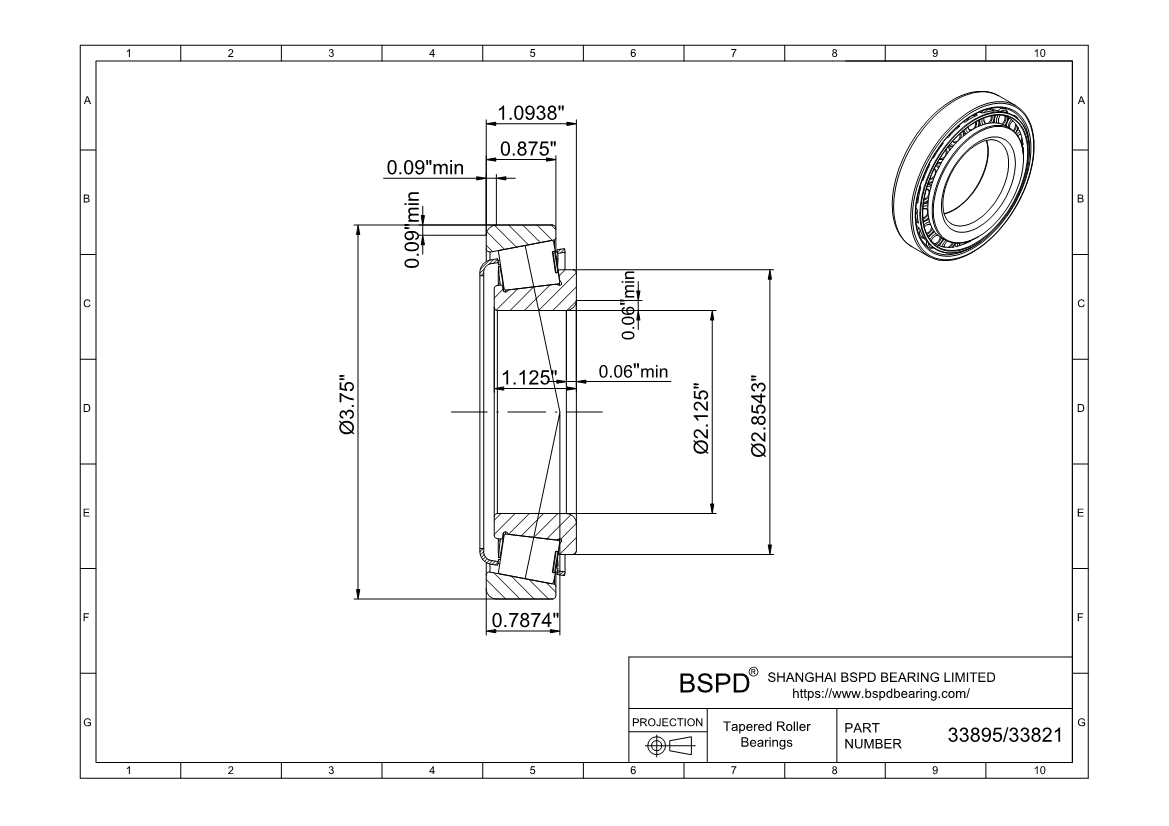

33895/33821 Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 2.1250 "; Outer Diameter: 3.7500 "; Width (Thickness): 1.0938 ";

33895/33821
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number33895/33821
Bore diameter2.1250 "
Outside diameter3.7500 "
Total width1.0938 "
Shoulder diameter of inner ring2.8543 "
Widthof inner ring1.1250 "
Width of outer ring0.8750 "
Chamfer minimum dimension of inner ring (r1,2)1.5 mm
Chamfer minimum dimension of outer ring (r3,4)2.3
Distance side face to pressure point (a)20
Basic dynamic load rating (Cr)129
Basic static load rating (Cor)137
Fatigue load limit (Pu)16
Reference speed5600 r/min
Limiting speed7000 r/min
Mass0.81 kg
Limiting value (e)0.33
Axial load factor (Y)1.8
Axial load factor (Y0)1
Maximum diameter of shaft abutment (da)61 mm
Minimum diameter of shaft abutment (db)63 mm
Minimum diameter of housing abutment (Da)83 mm
Maximum diameter of housing abutment (Da)85 mm
Minimum diameter of housing abutment (Db)90 mm
Minimum width of space required in housing on large side face (C6 mm
Minimum width of space required in housing on small side face (C5.5 mm
Maximum Radius of shaft fillet (ra)1.5 mm
Maximum Radius of housing fillet (rb)2.3 mm
33895/33821
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
