3R6-48E3B
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 42.5"； Outer Diameter: 57.1"； Width (Thickness): 5.00";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R6-48E3B |
| Curve No. | 6-48 |
| Radial(lbs) | 129000 |
| Compresive Thrust(lbs) | 1523000 |
| Moment(ft-lbs) | 1151000 |
| Weight(lbs) | 1129 |
| Thrust Capacity(lbs) | |

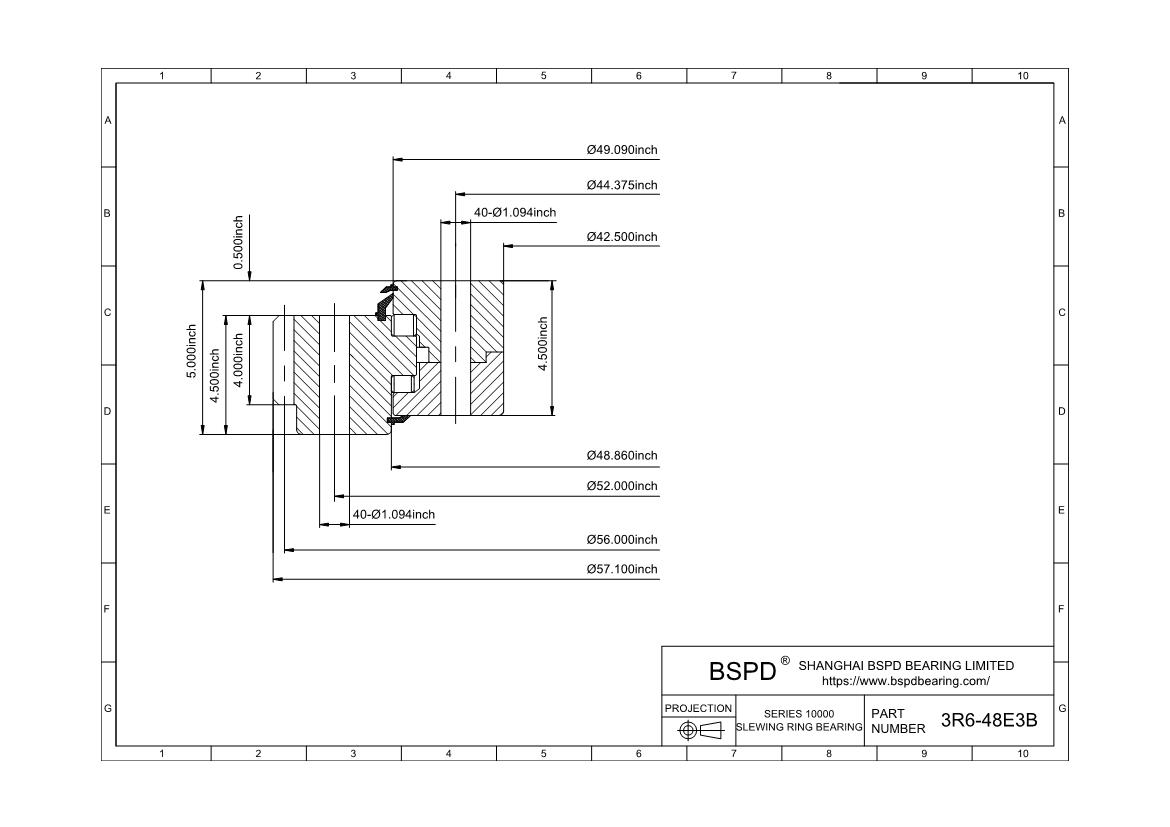

| Outline Dimensions(inches) | |
| HT | 5.00 |
| OH | 4.50 |
| K | .50 |
| IH | 4.50 |
| OD | 57.100 |
| OI | 48.86 |
| IO | 49.09 |
| ID | 42.50 |
| PD | 56.000 |
| DP | 1.5 |
| Mounting Holes | |
| OBC | 52.000 |
| OU | 1.09 |
| No of OBC Holes | 40 |
| IBC | 44.375 |
| IU | 1.09 |
| No of IBC Holes | 40 |
| Gear Data | |
| Tooth From 20 | F.D. |
| Gear Hardness(BHN) | 250-300 |
| F | 4.00 |
| NO of Teeth | 84 |
| Max.allow tang.tooth load(lbs) | 40695 |
