4200 ATN9 Deep Groove Ball Bearings

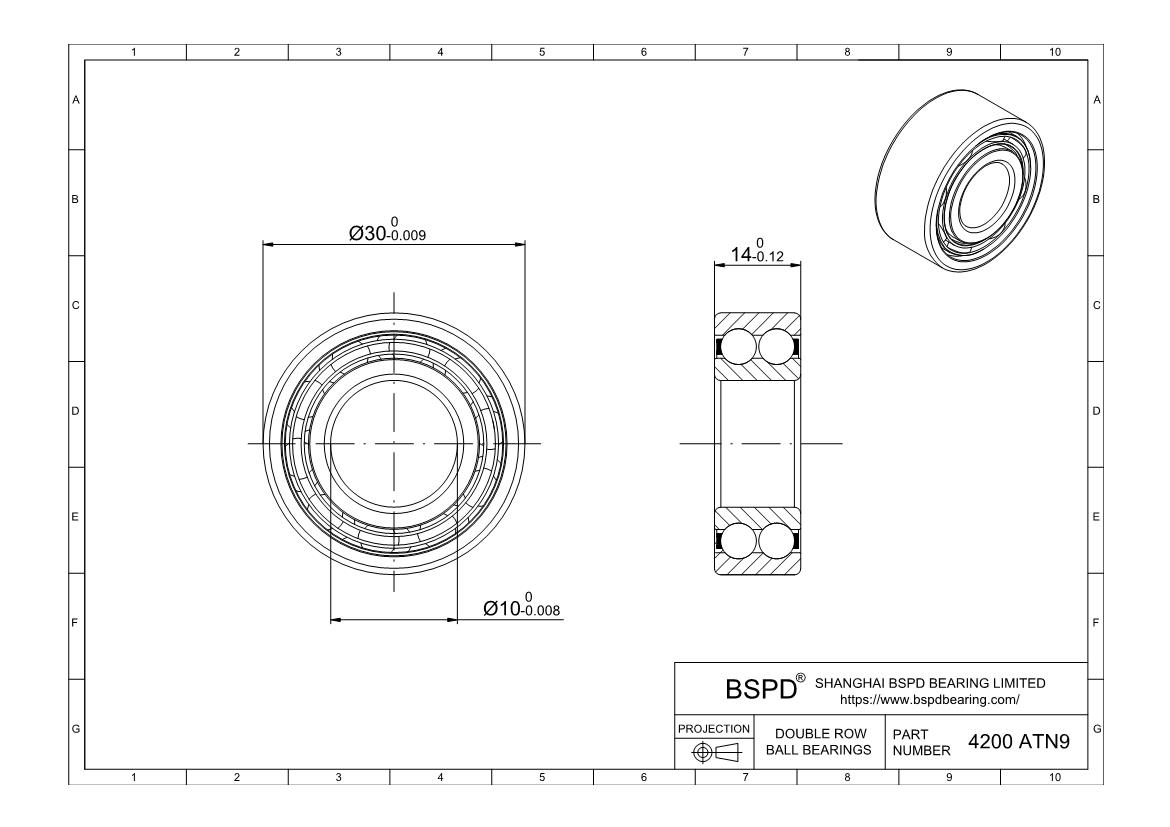

Dimensions: Bore (Inner) Diameter: 10 mm; Outer Diameter: 30 mm; Width (Thickness): 14 mm;

4200 ATN9
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Double Row
Seal Type Open
Part Number 4200 ATN9
For Shaft Diameter 10 mm
Bore Dia (d) 10 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 30 mm
Outer Dia (D) 30 mm
Outer Dia Tolerance -0.009mm to 0
Width (B) 14 mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Nylon 66 (PA66)
Dynamic Load Rating (C) (KN) 9.23
Static Load Rating (C0) (KN) 5.2
Reference Speed (X1000 RPM) 22
Limiting Speed (X1000 RPM) 40
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.003mm to 0.018mm
RoHS Compliant
Weight (grams) 49
4200 ATN9
