4313 ATN9 Deep Groove Ball Bearings

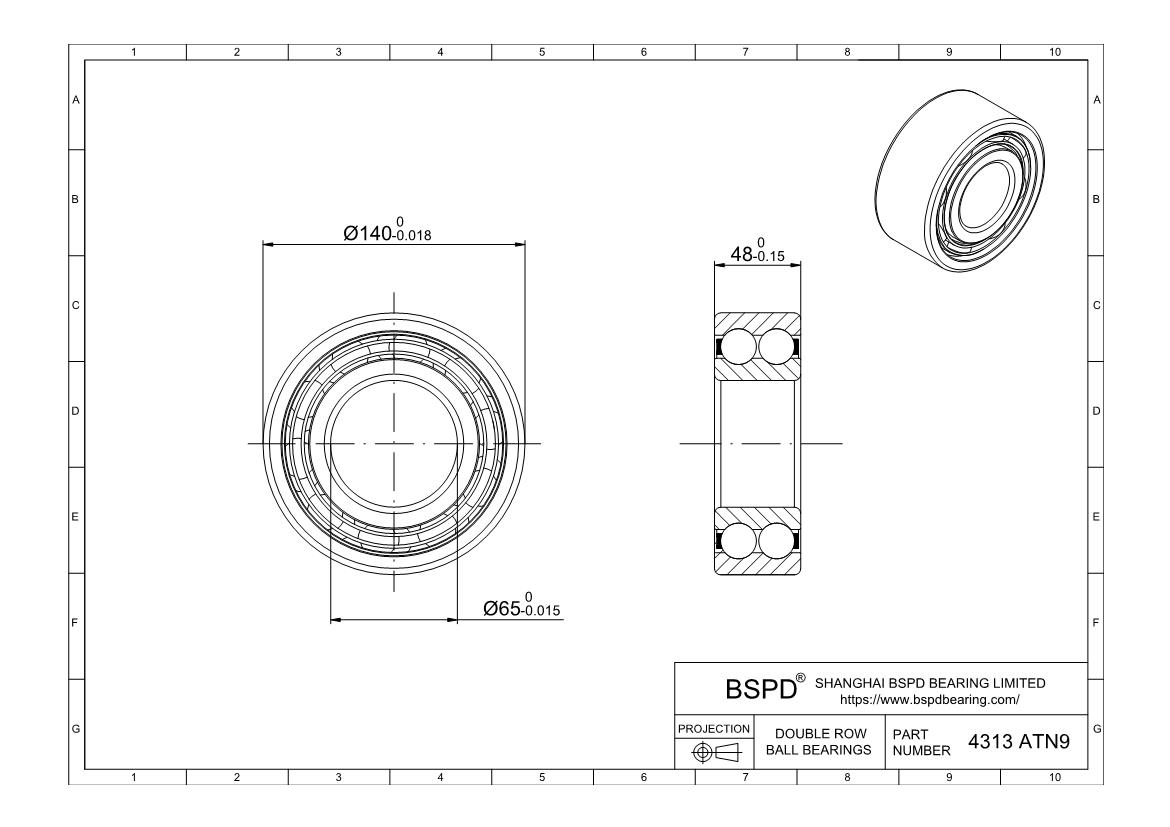

Dimensions: Bore (Inner) Diameter: 65 mm; Outer Diameter: 140 mm; Width (Thickness): 48 mm;

4313 ATN9
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Double Row
Seal Type Open
Part Number 4313 ATN9
For Shaft Diameter 65 mm
Bore Dia (d) 65 mm
Bore Dia Tolerance -0.015mm to 0
For Housing ID 140 mm
Outer Dia (D) 140 mm
Outer Dia Tolerance -0.018mm to 0
Width (B) 48 mm
Width Tolerance -0.150mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Nylon 66 (PA66)
Dynamic Load Rating (C) (KN) 121
Static Load Rating (C0) (KN) 106
Reference Speed (X1000 RPM) 4.3
Limiting Speed (X1000 RPM) 8
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.008mm to 0.028mm
RoHS Compliant
Weight (grams) 3250
4313 ATN9
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of ball bearings 4313 ATN9 ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
