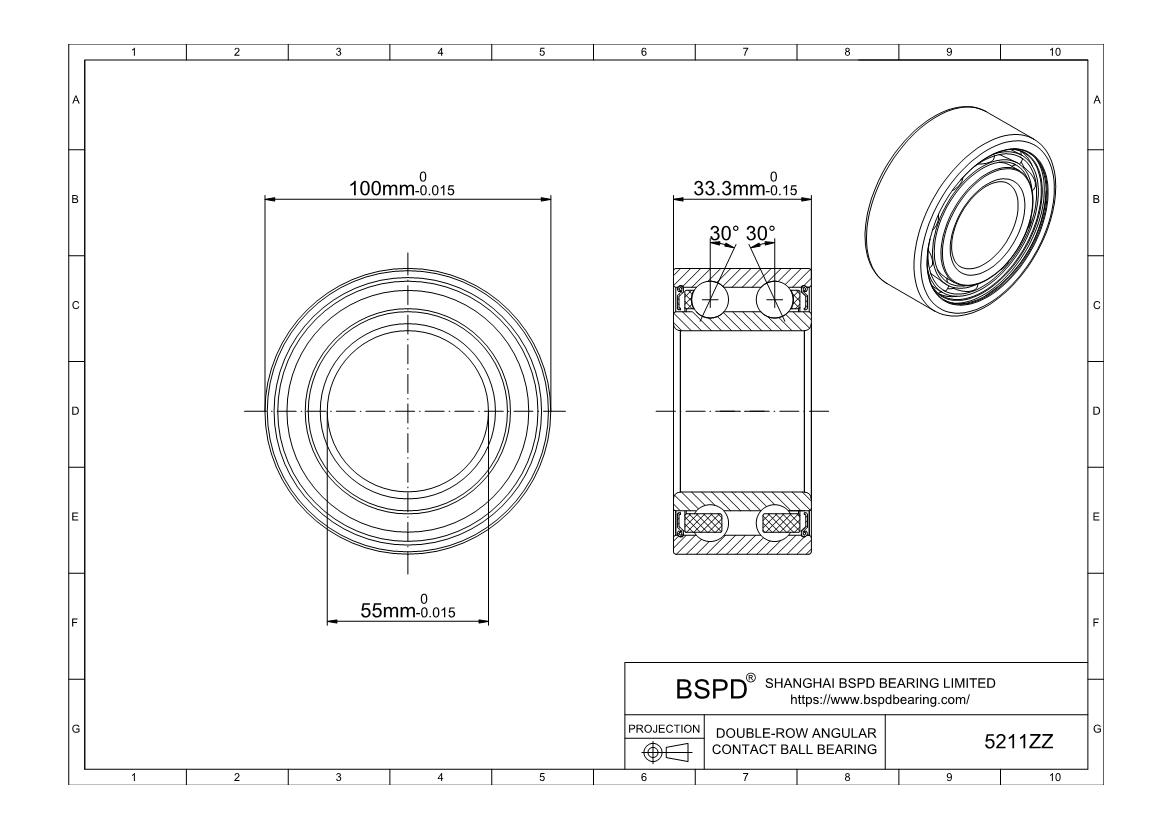

5211ZZ Double Row Angular Contact Ball Bearings
Dimensions: Bore (Inner) Diameter: 55 mm; Outer Diameter: 100 mm; Width (Thickness): 33.3 mm;

5211ZZ
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Combined Radial and Thrust
Construction One
Single Row/Double Row Double
Seal Type Shielded
Precision Rating P0 (ABEC-1)
Contact Angle 30 º
Part Number 5211 ZZ
Bore Dia (d) 55 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia (D) 100 mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 33.3 mm
Width Tolerance -0.15mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Nylon 66
Dynamic Load Rating (Cr) (KN) 56
Static Load Rating (Cor) (KN) 49
Max Speed (Grease) (RPM) 3870
Max Speed (Oil) (RPM)  5040
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Mass(Kg) 0.96
RoHS Compliant
5211ZZ
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Angular Contact Ball Bearings 5211ZZ ? Double Row Angular Contact Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
