5309ZZ Double Row Angular Contact Ball Bearings

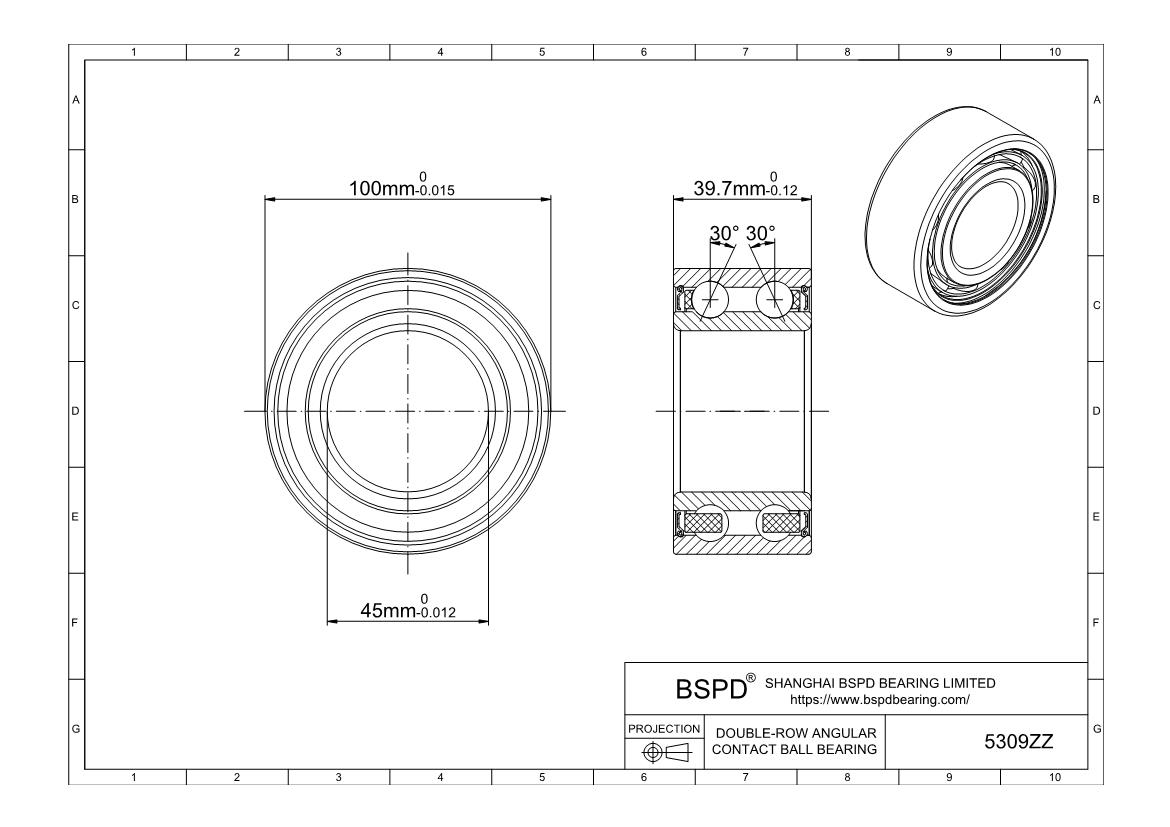

Dimensions: Bore (Inner) Diameter: 45 mm; Outer Diameter: 100 mm; Width (Thickness): 39.7 mm;

5309ZZ
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Combined Radial and Thrust
Construction One
Single Row/Double Row Double
Seal Type Shielded
Precision Rating P0 (ABEC-1)
Contact Angle 30 º
Part Number 5309 ZZ
Bore Dia (d) 45 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia (D) 100 mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 39.7 mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Nylon 66
Dynamic Load Rating (Cr) (KN) 68.5
Static Load Rating (Cor) (KN) 51
Max Speed (Grease) (RPM) 4050
Max Speed (Oil) (RPM)  5400
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Mass(Kg) 1.4
RoHS Compliant
5309ZZ
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
