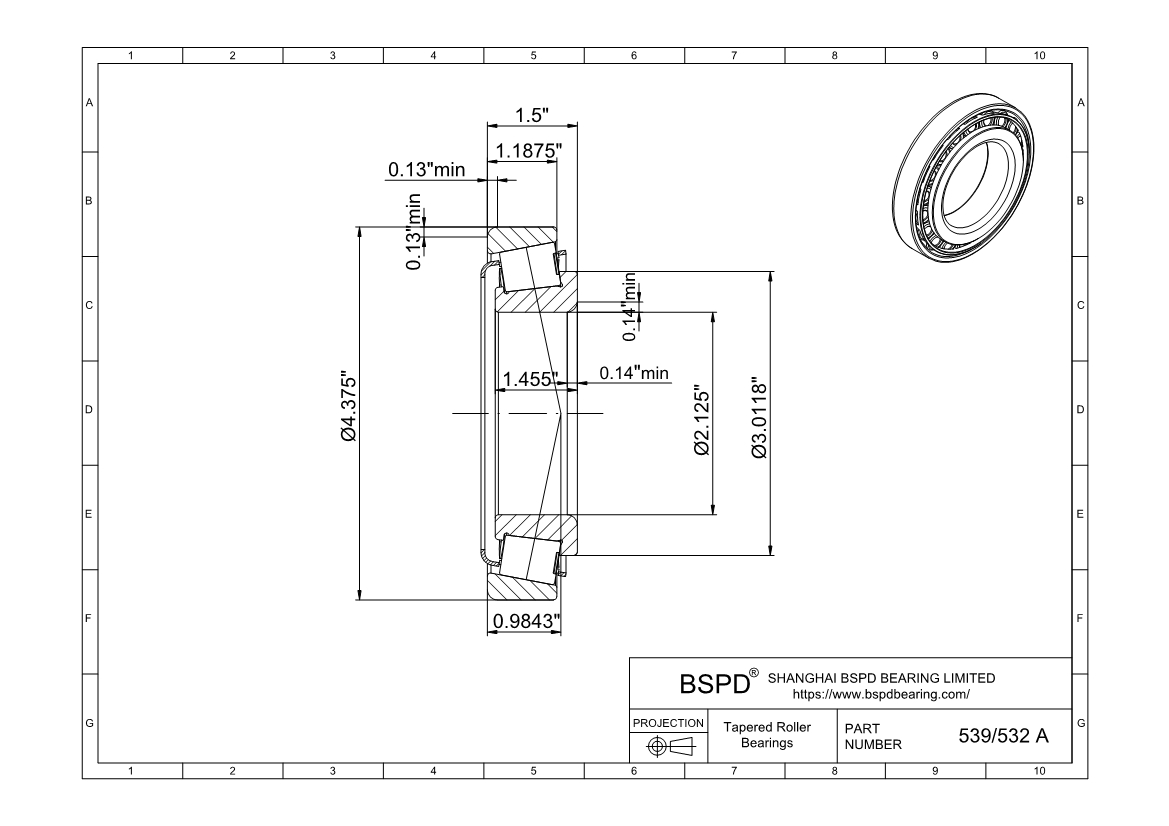

539/532 A
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 2.1250 "； Outer Diameter: 4.3750 "； Width (Thickness): 1.5000 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | 539/532 A |
| Bore diameter | 2.1250 " |
| Outside diameter | 4.3750 " |
| Total width | 1.5000 " |
| Shoulder diameter of inner ring | 3.0118 " |
| Widthof inner ring | 1.4550 " |
| Width of outer ring | 1.1875 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 25 |
| Basic dynamic load rating (Cr) | 183 |
| Basic static load rating (Cor) | 190 |
| Fatigue load limit (Pu) | 21.6 |
| Reference speed | 5300 r/min |
| Limiting speed | 6300 r/min |
| Mass | 1.65 kg |
| Limiting value (e) | 0.3 |
| Axial load factor (Y) | 2 |
| Axial load factor (Y0) | 1.1 |
| Maximum diameter of shaft abutment (da) | 64 mm |
| Minimum diameter of shaft abutment (db) | 67 mm |
| Minimum diameter of housing abutment (Da) | 89 mm |
| Maximum diameter of housing abutment (Da) | 99 mm |
| Minimum diameter of housing abutment (Db) | 97 mm |
| Minimum width of space required in housing on large side face (C | 4 mm |
| Minimum width of space required in housing on small side face (C | 7.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
