6005-2RS Deep Groove Ball Bearings

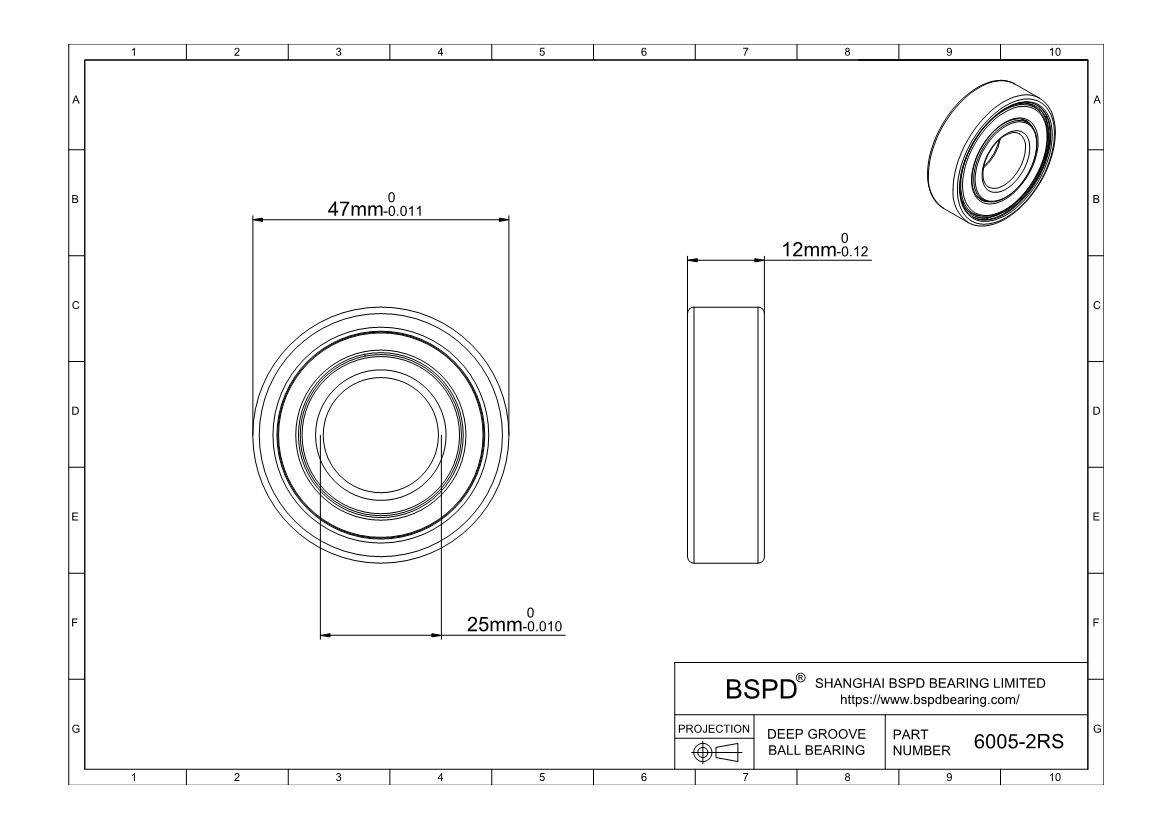

Dimensions: Bore (Inner) Diameter: 25 mm; Outer Diameter: 47 mm; Width (Thickness): 12 mm;

6005-2RS
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Part Number 6005 2RS
For Shaft Diameter 25 mm
Bore Dia (d) 25 mm
Bore Dia Tolerance -0.01mm to 0
For Housing ID 47mm
Outer Dia (D) 47mm
Outer Dia Tolerance -0.011mm to 0
Width (B) 12mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 10100
Static Load Rating (Cor) (Newtons) 5850
Max Speed (Grease) (X1000 RPM) 15
Max Speed (Oil) (X1000 RPM)  18
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Ball Qty 10
Ball Dia 6.350mm
Weight (grams) 80
6005-2RS
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
