6008-2RS Deep Groove Ball Bearings

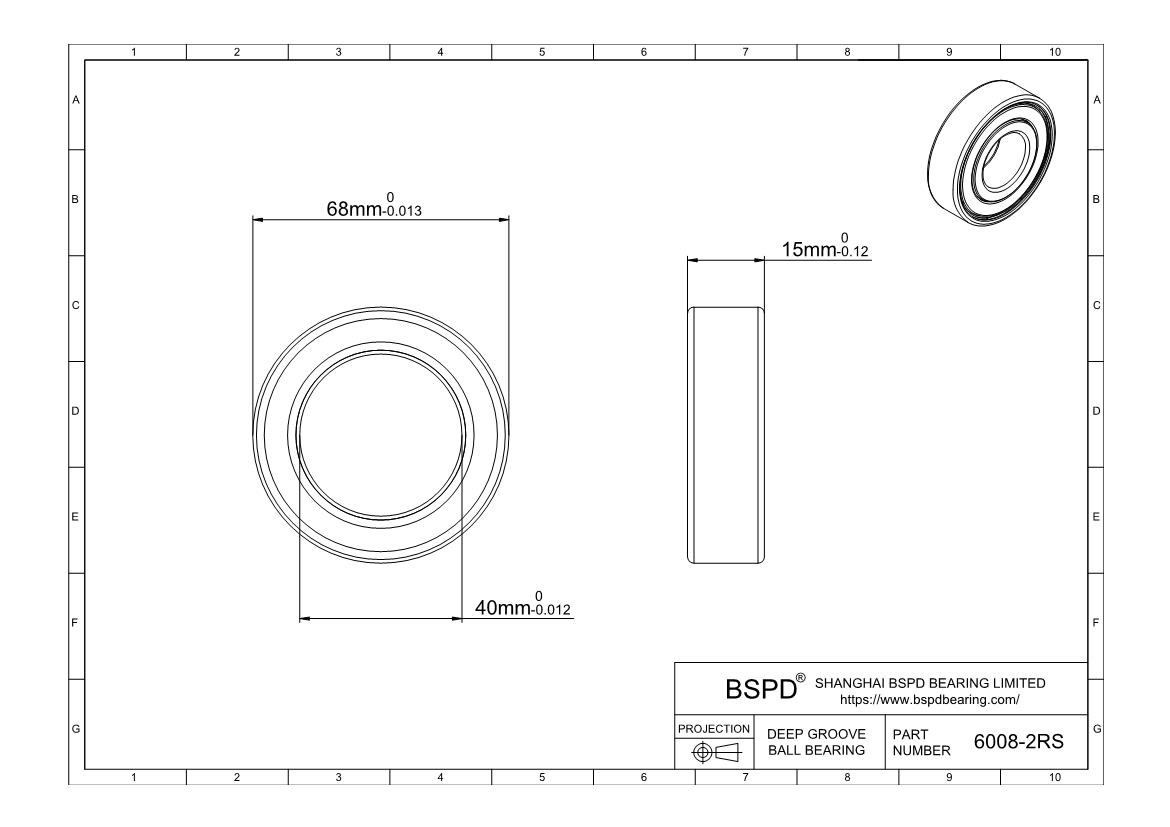

Dimensions: Bore (Inner) Diameter: 40 mm; Outer Diameter: 68 mm; Width (Thickness): 15 mm;

6008-2RS
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Part Number 6008 2RS
For Shaft Diameter 40 mm
Bore Dia (d) 40 mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 68mm
Outer Dia (D) 68mm
Outer Dia Tolerance -0.013mm to 0
Width (B) 15mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 16700
Static Load Rating (Cor) (Newtons) 11500
Max Speed (Grease) (X1000 RPM) 10
Max Speed (Oil) (X1000 RPM)  12
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Ball Qty 12
Ball Dia 7.938mm
Weight (grams) 192
6008-2RS
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of ball bearings 6008-2RS ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
