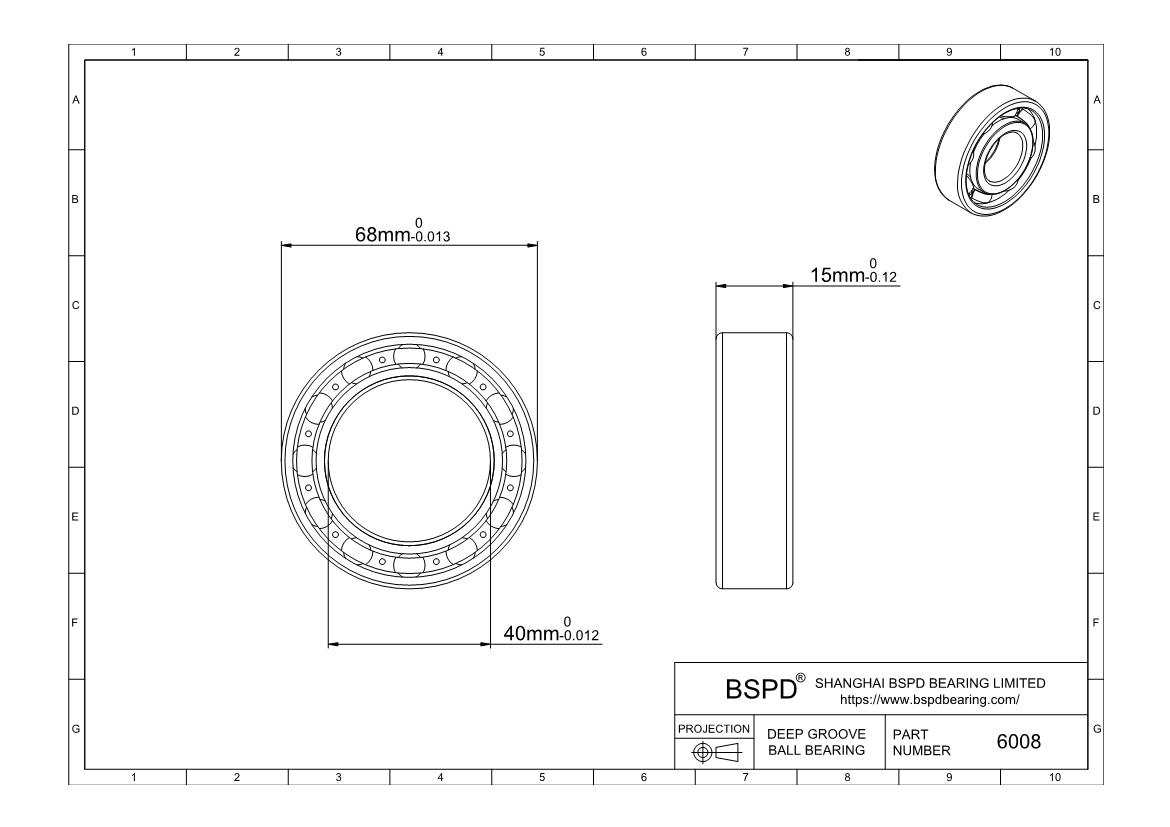

6008
Deep Groove Ball Bearings
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 68 mm； Width (Thickness): 15 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | 6008 |
| For Shaft Diameter | 40 mm |
| Bore Dia (d) | 40 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| For Housing ID | 68mm |
| Outer Dia (D) | 68mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 15mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 16700 |
| Static Load Rating (Cor) (Newtons) | 11500 |
| Max Speed (Grease) (X1000 RPM) | 10 |
| Max Speed (Oil) (X1000 RPM) | 12 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.006mm to 0.020mm |
| RoHS | Compliant |
| Ball Qty | 12 |
| Ball Dia | 7.938mm |
| Weight (grams) | 192 |
Print PDF
Request a 3D CAD Model
