6017 Deep Groove Ball Bearings

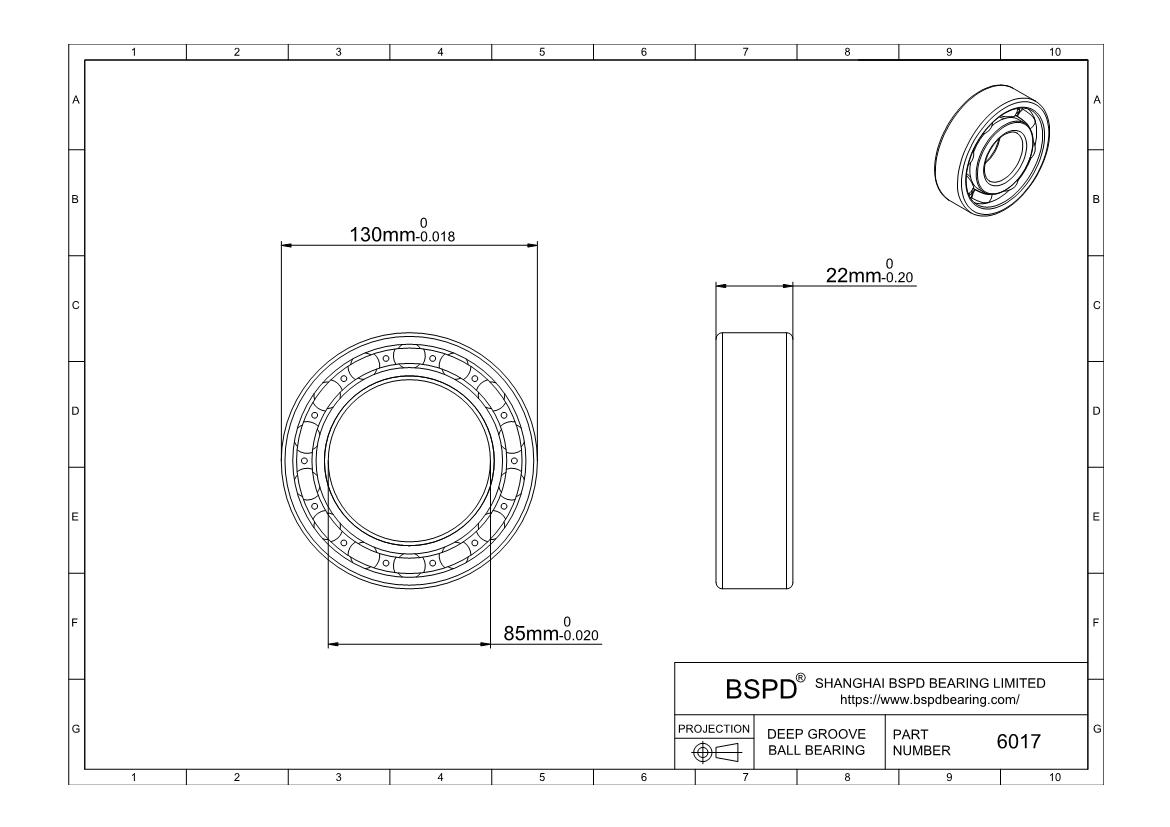

Dimensions: Bore (Inner) Diameter: 85 mm; Outer Diameter: 130 mm; Width (Thickness): 22 mm;

6017
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 6017
For Shaft Diameter 85 mm
Bore Dia (d) 85 mm
Bore Dia Tolerance -0.02mm to 0
For Housing ID 130mm
Outer Dia (D) 130mm
Outer Dia Tolerance -0.018mm to 0
Width (B) 22mm
Width Tolerance -0.200mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 49500
Static Load Rating (Cor) (Newtons) 43100
Max Speed (Grease) (X1000 RPM) 5
Max Speed (Oil) (X1000 RPM)  6
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.012mm to 0.036mm
RoHS Compliant
Ball Qty 14
Ball Dia 14mm
Weight (grams) 899
6017
