6019ZZ Deep Groove Ball Bearings

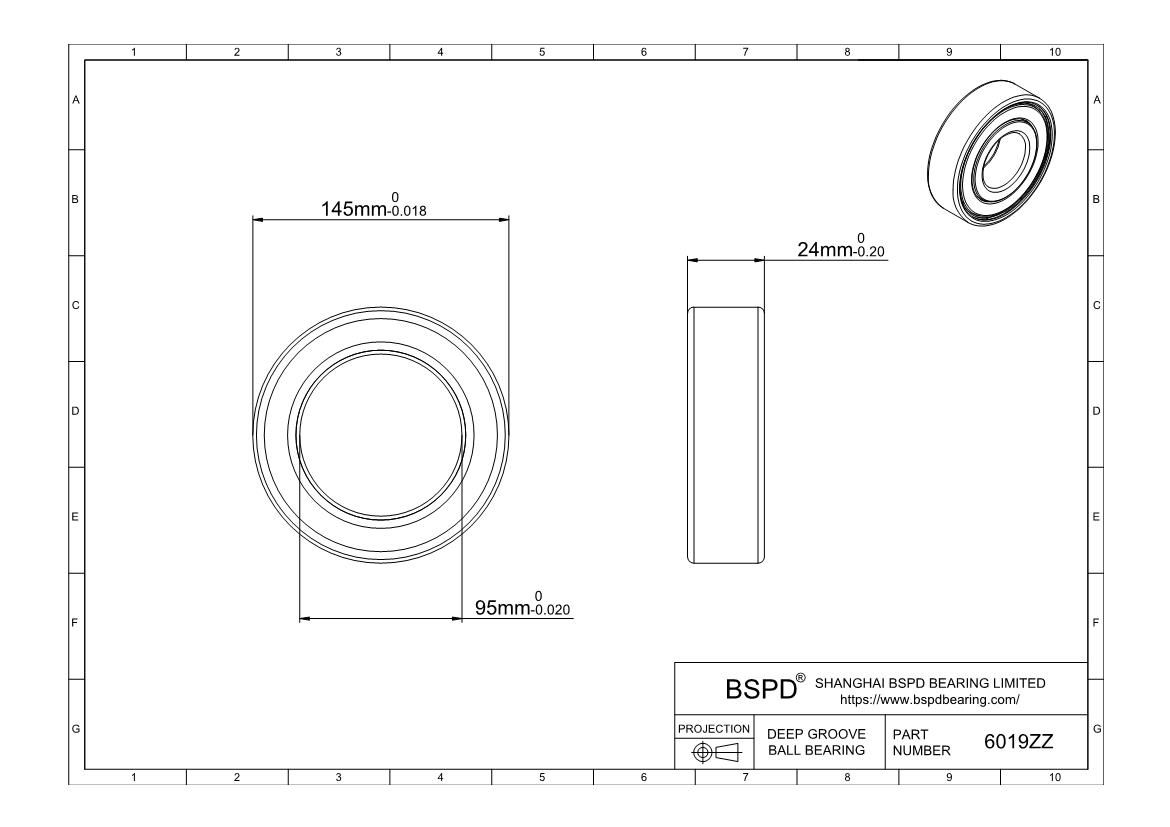

Dimensions: Bore (Inner) Diameter: 95 mm; Outer Diameter: 145 mm; Width (Thickness): 24 mm;

6019ZZ
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number 6019ZZ
For Shaft Diameter 95 mm
Bore Dia (d) 95 mm
Bore Dia Tolerance -0.02mm to 0
For Housing ID 145mm
Outer Dia (D) 145mm
Outer Dia Tolerance -0.018mm to 0
Width (B) 24mm
Width Tolerance -0.200mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 60400
Static Load Rating (Cor) (Newtons) 53900
Max Speed (Grease) (X1000 RPM) 4.5
Max Speed (Oil) (X1000 RPM)  5.3
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.012mm to 0.036mm
RoHS Compliant
Ball Qty 14
Ball Dia 15.081mm
Weight (grams) 1200
6019ZZ
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
