6020
Deep Groove Ball Bearings

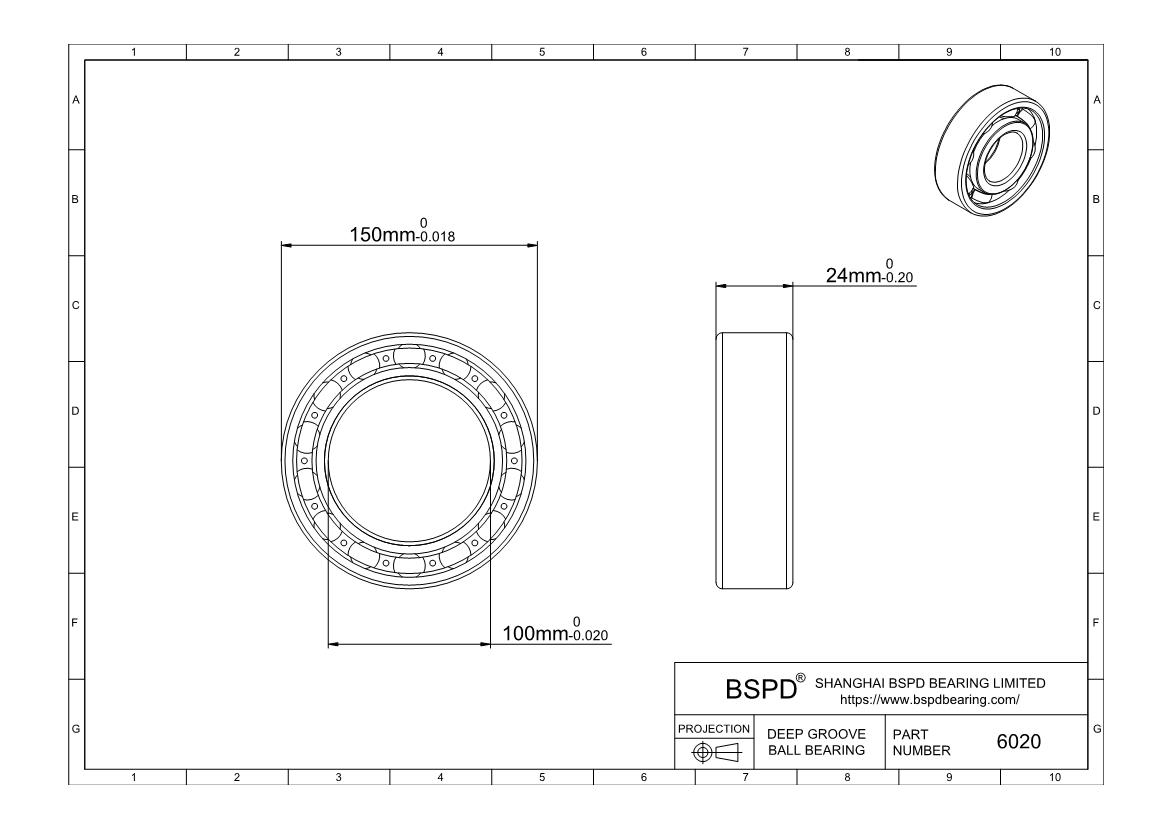

Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 150 mm； Width (Thickness): 24 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | 6020 |
| For Shaft Diameter | 100 mm |
| Bore Dia (d) | 100 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| For Housing ID | 150mm |
| Outer Dia (D) | 150mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width (B) | 24mm |
| Width Tolerance | -0.200mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 60200 |
| Static Load Rating (Cor) (Newtons) | 54200 |
| Max Speed (Grease) (X1000 RPM) | 4.3 |
| Max Speed (Oil) (X1000 RPM) | 5.3 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.012mm to 0.036mm |
| RoHS | Compliant |
| Ball Qty | 14 |
| Ball Dia | 16mm |
| Weight (grams) | 1250 |
