6203 Deep Groove Ball Bearings

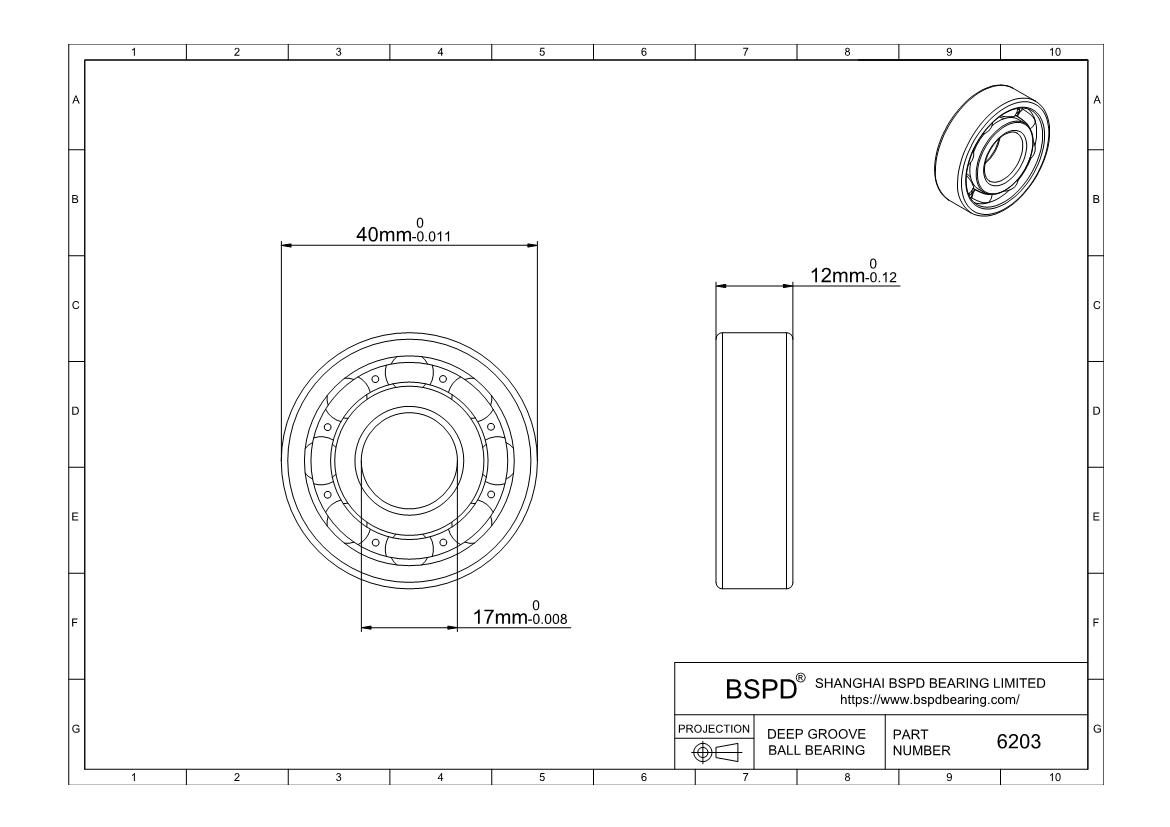

Dimensions: Bore (Inner) Diameter: 17 mm; Outer Diameter: 40 mm; Width (Thickness): 12 mm;

6203
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 6203
For Shaft Diameter 17 mm
Bore Dia (d) 17 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 40mm
Outer Dia (D) 40mm
Outer Dia Tolerance -0.011mm to 0
Width (B) 12mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 9550
Static Load Rating (Cor) (Newtons) 4800
Max Speed (Grease) (X1000 RPM) 17
Max Speed (Oil) (X1000 RPM)  21
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.003mm to 0.018mm
RoHS Compliant
Ball Qty 8
Ball Dia 6.747mm
Weight (grams) 65
6203
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
