6209 Deep Groove Ball Bearings

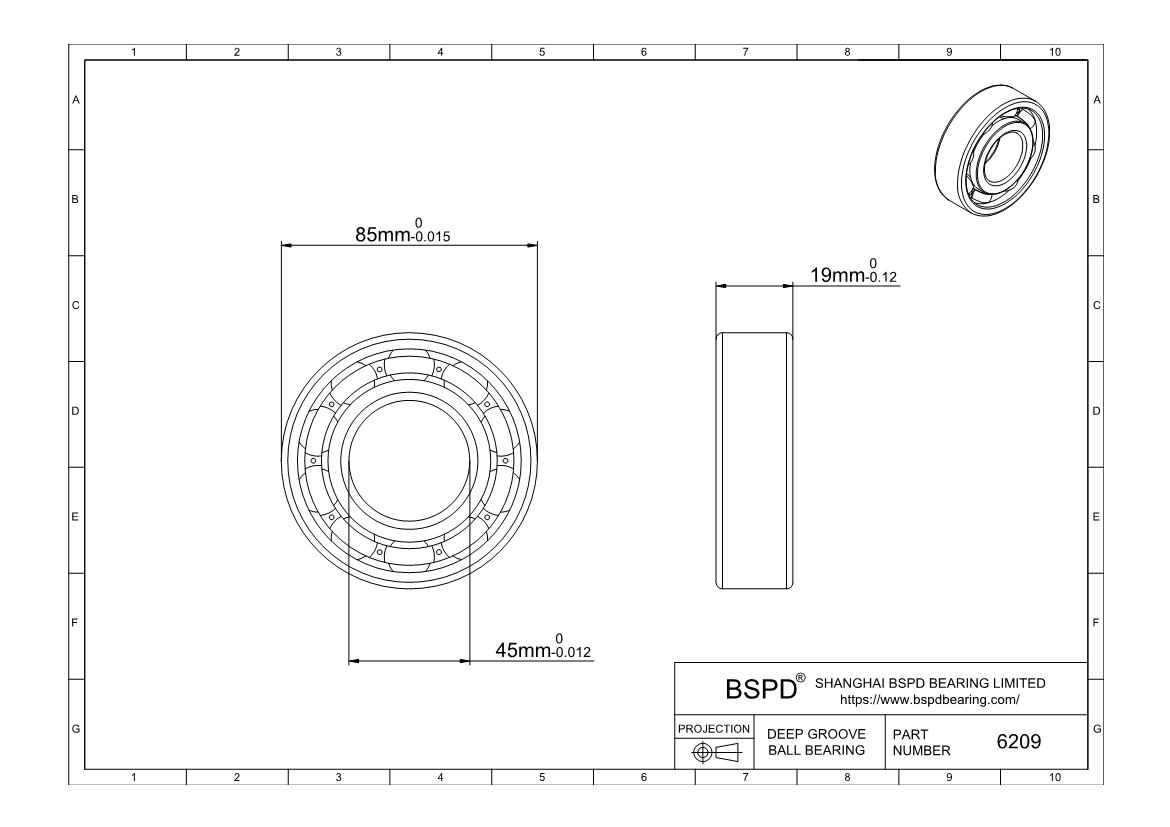

Dimensions: Bore (Inner) Diameter: 45 mm; Outer Diameter: 85 mm; Width (Thickness): 19 mm;

6209
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 6209
For Shaft Diameter 45 mm
Bore Dia (d) 45 mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 85mm
Outer Dia (D) 85mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 19mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 32700
Static Load Rating (Cor) (Newtons) 20300
Max Speed (Grease) (X1000 RPM) 7.7
Max Speed (Oil) (X1000 RPM)  9.2
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.023mm
RoHS Compliant
Ball Qty 9
Ball Dia 12.700mm
Weight (grams) 407
6209
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
