6210ZZ Deep Groove Ball Bearings

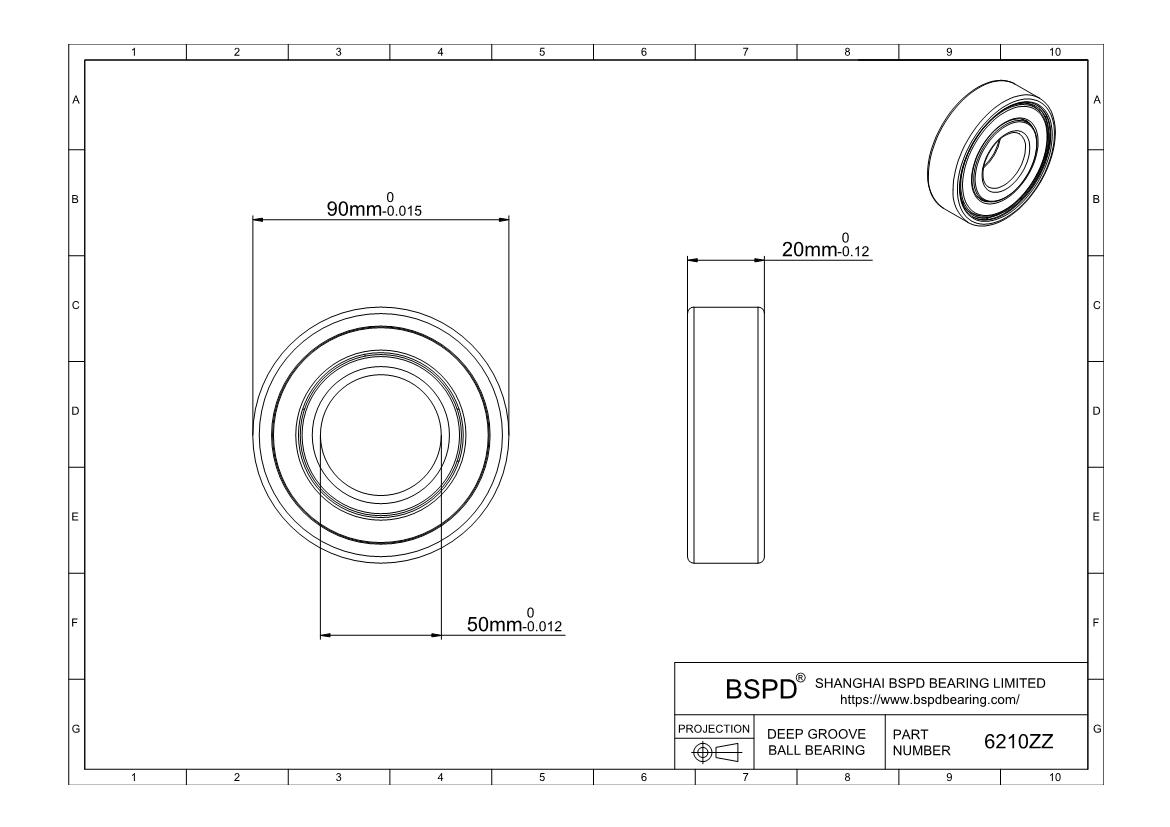

Dimensions: Bore (Inner) Diameter: 50 mm; Outer Diameter: 90 mm; Width (Thickness): 20 mm;

6210ZZ
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number 6210ZZ
For Shaft Diameter 50 mm
Bore Dia (d) 50 mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 90mm
Outer Dia (D) 90mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 20mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 35100
Static Load Rating (Cor) (Newtons) 23300
Max Speed (Grease) (X1000 RPM) 7.1
Max Speed (Oil) (X1000 RPM)  8.5
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.023mm
RoHS Compliant
Ball Qty 10
Ball Dia 12.700mm
Weight (grams) 463
6210ZZ
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of ball bearings 6210ZZ ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
