6211 Deep Groove Ball Bearings

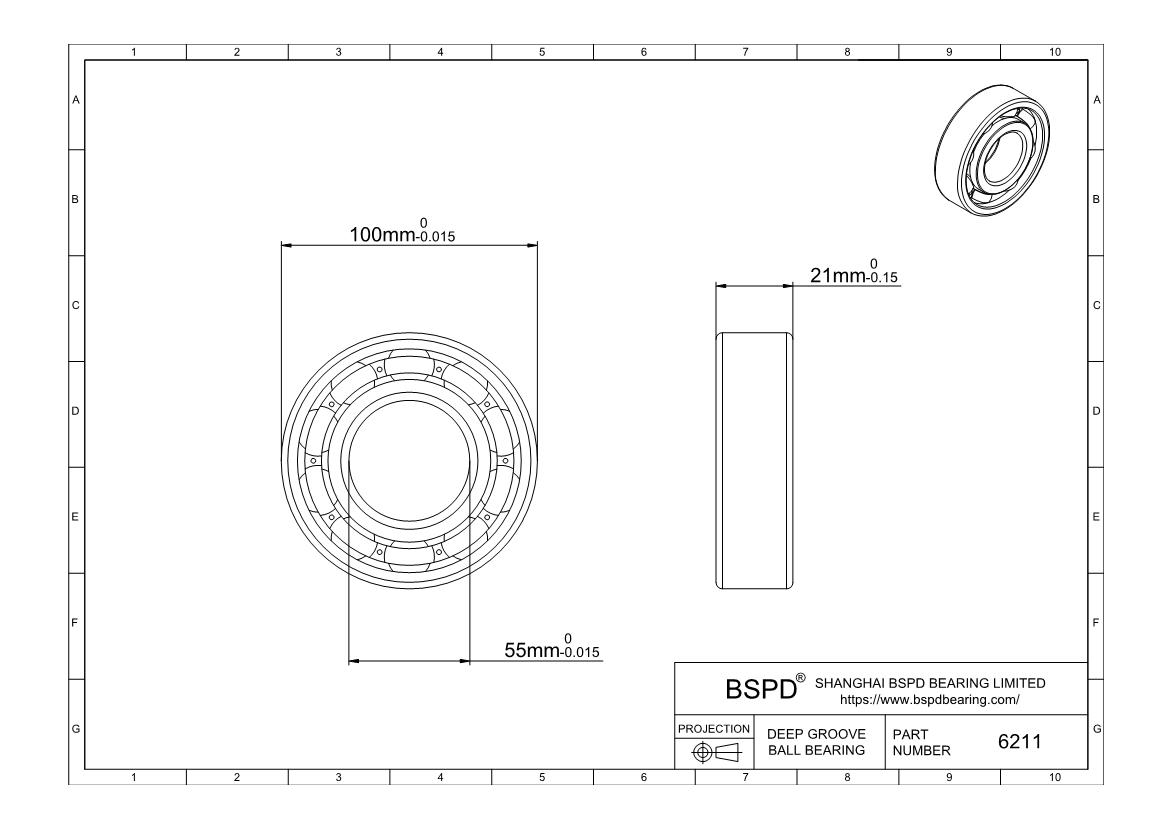

Dimensions: Bore (Inner) Diameter: 55 mm; Outer Diameter: 100 mm; Width (Thickness): 21 mm;

6211
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 6211
For Shaft Diameter 55 mm
Bore Dia (d) 55 mm
Bore Dia Tolerance -0.015mm to 0
For Housing ID 100mm
Outer Dia (D) 100mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 21mm
Width Tolerance -0.150mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 43400
Static Load Rating (Cor) (Newtons) 29400
Max Speed (Grease) (X1000 RPM) 6.3
Max Speed (Oil) (X1000 RPM)  7.5
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.008mm to 0.028mm
RoHS Compliant
Ball Qty 10
Ball Dia 14.288mm
Weight (grams) 599
6211
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of ball bearings 6211 ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
