6216ZZ Deep Groove Ball Bearings

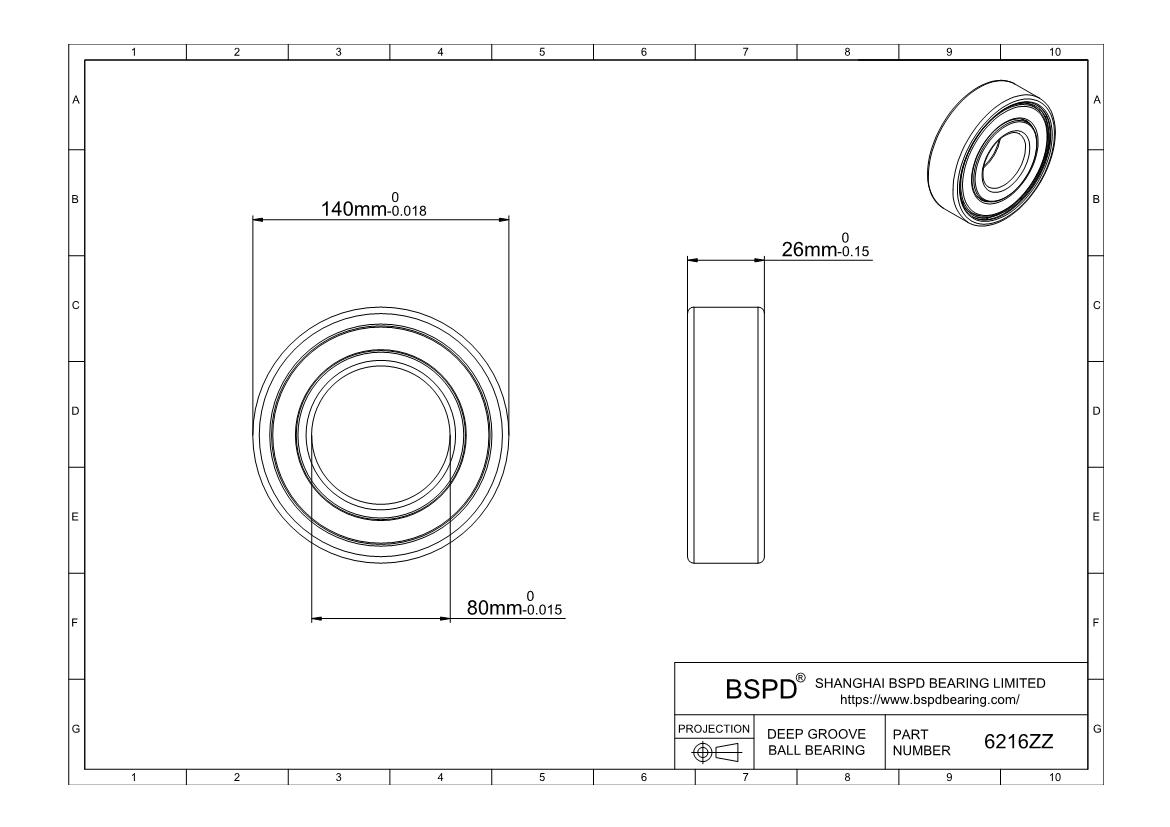

Dimensions: Bore (Inner) Diameter: 80 mm; Outer Diameter: 140 mm; Width (Thickness): 26 mm;

6216ZZ
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number 6216ZZ
For Shaft Diameter 80 mm
Bore Dia (d) 80 mm
Bore Dia Tolerance -0.015mm to 0
For Housing ID 140mm
Outer Dia (D) 140mm
Outer Dia Tolerance -0.018mm to 0
Width (B) 26mm
Width Tolerance -0.150mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 72700
Static Load Rating (Cor) (Newtons) 53000
Max Speed (Grease) (X1000 RPM) 4.5
Max Speed (Oil) (X1000 RPM)  5.3
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.01mm to 0.03mm
RoHS Compliant
Ball Qty 11
Ball Dia 18.000mm
Weight (grams) 1380
6216ZZ
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of ball bearings 6216ZZ ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
