63008-2RS Deep Groove Ball Bearings

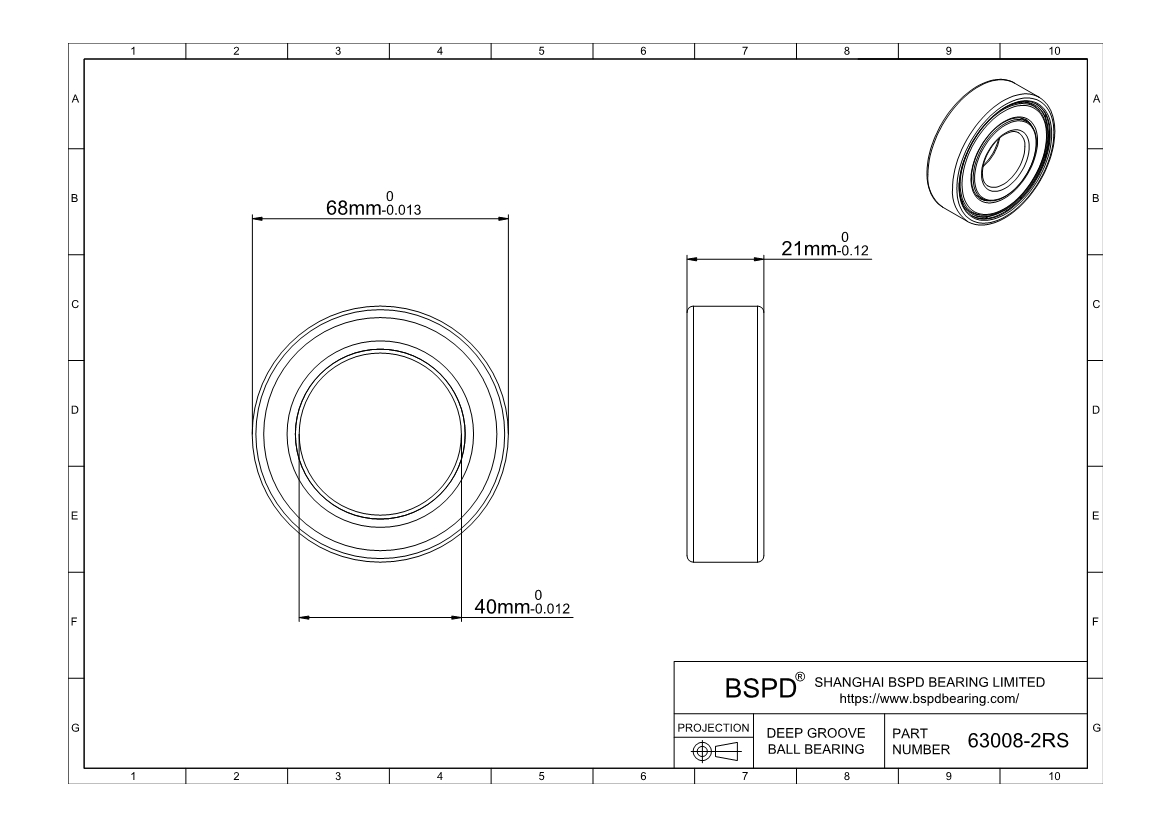

Dimensions: Bore (Inner) Diameter: 40 mm; Outer Diameter: 68 mm; Width (Thickness): 21 mm;

63008-2RS
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Part Number 63008 2RS
For Shaft Diameter 40 mm
Bore Dia (d) 40 mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 68 mm
Outer Dia (D) 68 mm
Outer Dia Tolerance -0.013mm to 0
Width (B) 21 mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 16800
Static Load Rating (Cor) (Newtons) 11600
Max Speed (Grease) (X1000 RPM) 12
Max Speed (Oil) (X1000 RPM)  14
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Ball Qty
Ball Dia
Weight (grams) 240
