6306ZZ Deep Groove Ball Bearings

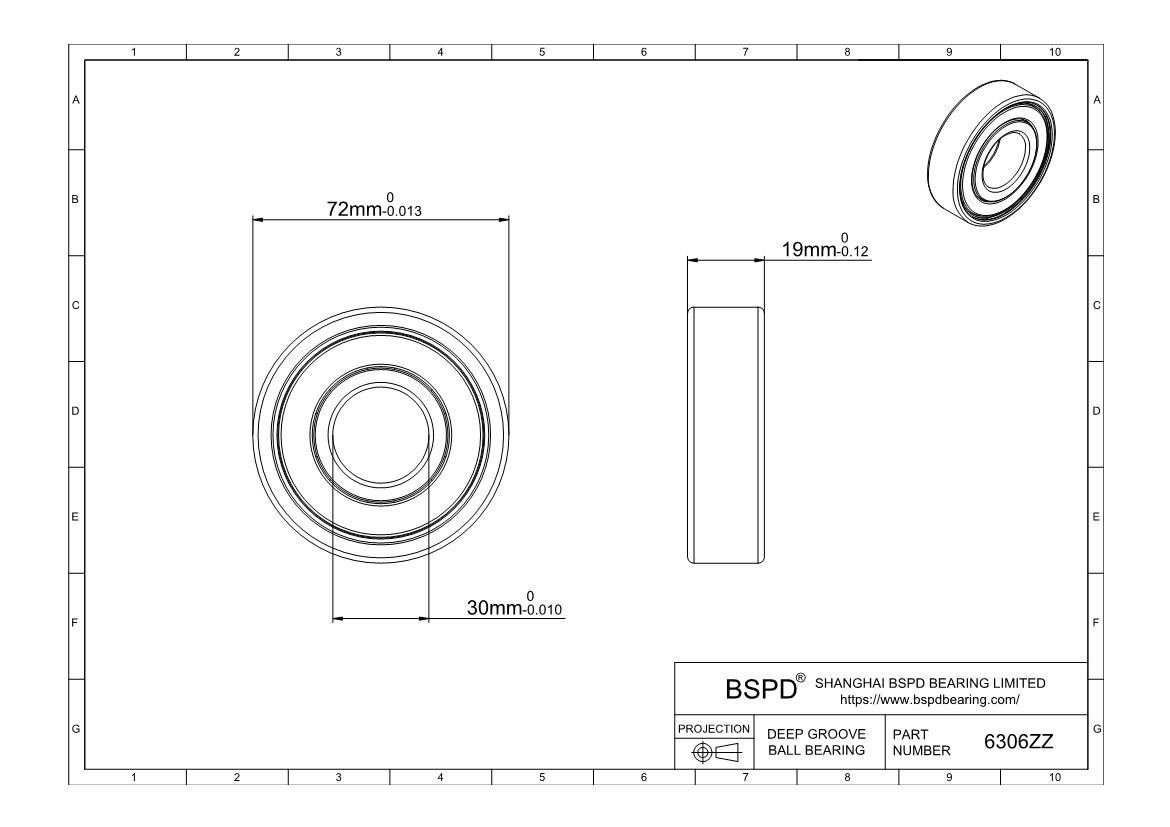

Dimensions: Bore (Inner) Diameter: 30 mm; Outer Diameter: 72 mm; Width (Thickness): 19 mm;

6306ZZ
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number 6306ZZ
For Shaft Diameter 30 mm
Bore Dia (d) 30 mm
Bore Dia Tolerance -0.01mm to 0
For Housing ID 72mm
Outer Dia (D) 72mm
Outer Dia Tolerance -0.013mm to 0
Width (B) 19mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 26700
Static Load Rating (Cor) (Newtons) 15000
Max Speed (Grease) (X1000 RPM) 9.6
Max Speed (Oil) (X1000 RPM)  12
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Ball Qty 8
Ball Dia 11.906mm
Weight (grams) 346
6306ZZ
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of ball bearings 6306ZZ ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
