6308 Deep Groove Ball Bearings

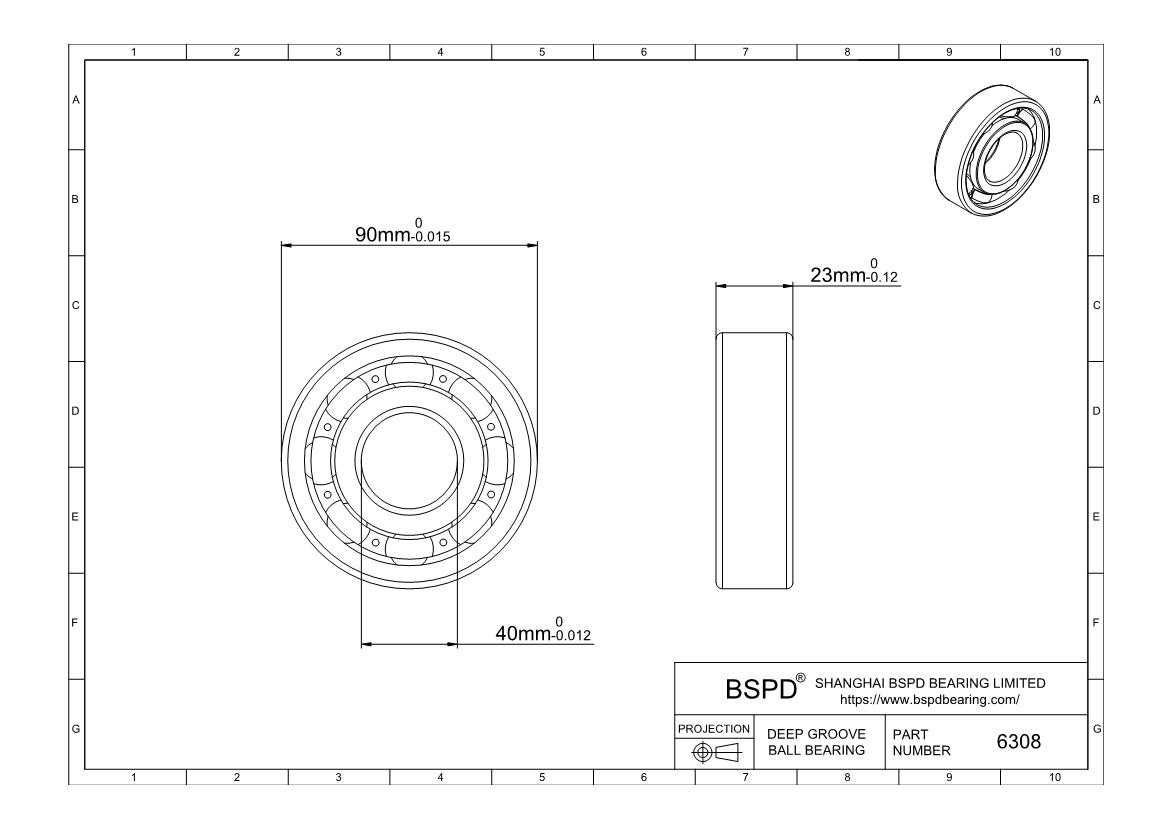

Dimensions: Bore (Inner) Diameter: 40 mm; Outer Diameter: 90 mm; Width (Thickness): 23 mm;

6308
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 6308
For Shaft Diameter 40 mm
Bore Dia (d) 40 mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 90mm
Outer Dia (D) 90mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 23mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 40700
Static Load Rating (Cor) (Newtons) 24000
Max Speed (Grease) (X1000 RPM) 7.5
Max Speed (Oil) (X1000 RPM)  9
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Ball Qty 8
Ball Dia 15.081mm
Weight (grams) 620
6308
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
