6311-2RS Deep Groove Ball Bearings

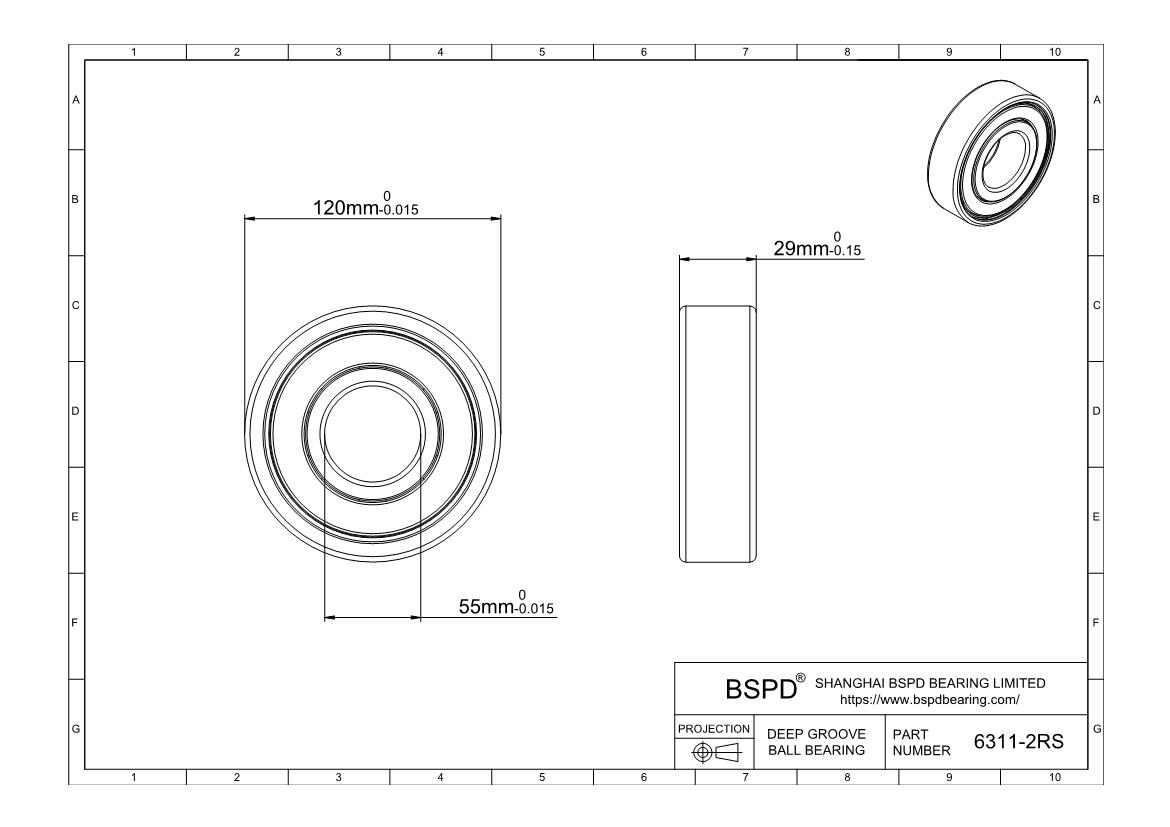

Dimensions: Bore (Inner) Diameter: 55 mm; Outer Diameter: 120 mm; Width (Thickness): 29 mm;

6311-2RS
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Part Number 6311 2RS
For Shaft Diameter 55 mm
Bore Dia (d) 55 mm
Bore Dia Tolerance -0.015mm to 0
For Housing ID 120mm
Outer Dia (D) 120mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 29mm
Width Tolerance -0.150mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 71600
Static Load Rating (Cor) (Newtons) 45000
Max Speed (Grease) (X1000 RPM) 4
Max Speed (Oil) (X1000 RPM)  6.7
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.008mm to 0.028mm
RoHS Compliant
Ball Qty 8
Ball Dia 20.638mm
Weight (grams) 1350
