6318 Deep Groove Ball Bearings

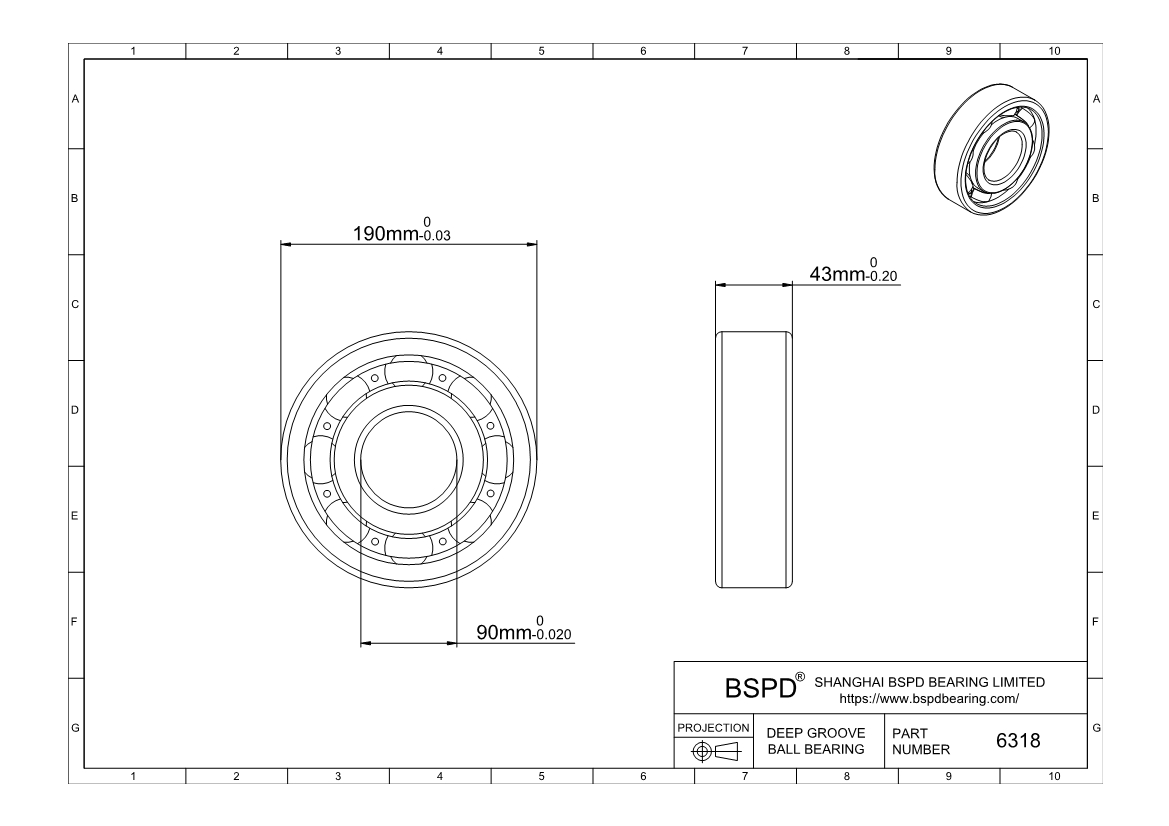

Dimensions: Bore (Inner) Diameter: 90 mm; Outer Diameter: 190 mm; Width (Thickness): 43 mm;

6318
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 6318
For Shaft Diameter 90 mm
Bore Dia (d) 90 mm
Bore Dia Tolerance -0.02mm to 0
For Housing ID 190mm
Outer Dia (D) 190mm
Outer Dia Tolerance -0.03mm to 0
Width (B) 43mm
Width Tolerance -0.200mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 143000
Static Load Rating (Cor) (Newtons) 107000
Max Speed (Grease) (X1000 RPM) 3.6
Max Speed (Oil) (X1000 RPM)  4.3
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.012mm to 0.036mm
RoHS Compliant
Ball Qty 8
Ball Dia 32mm
Weight (grams) 4920
6318
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of ball bearings 6318 ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
