6414 Deep Groove Ball Bearings

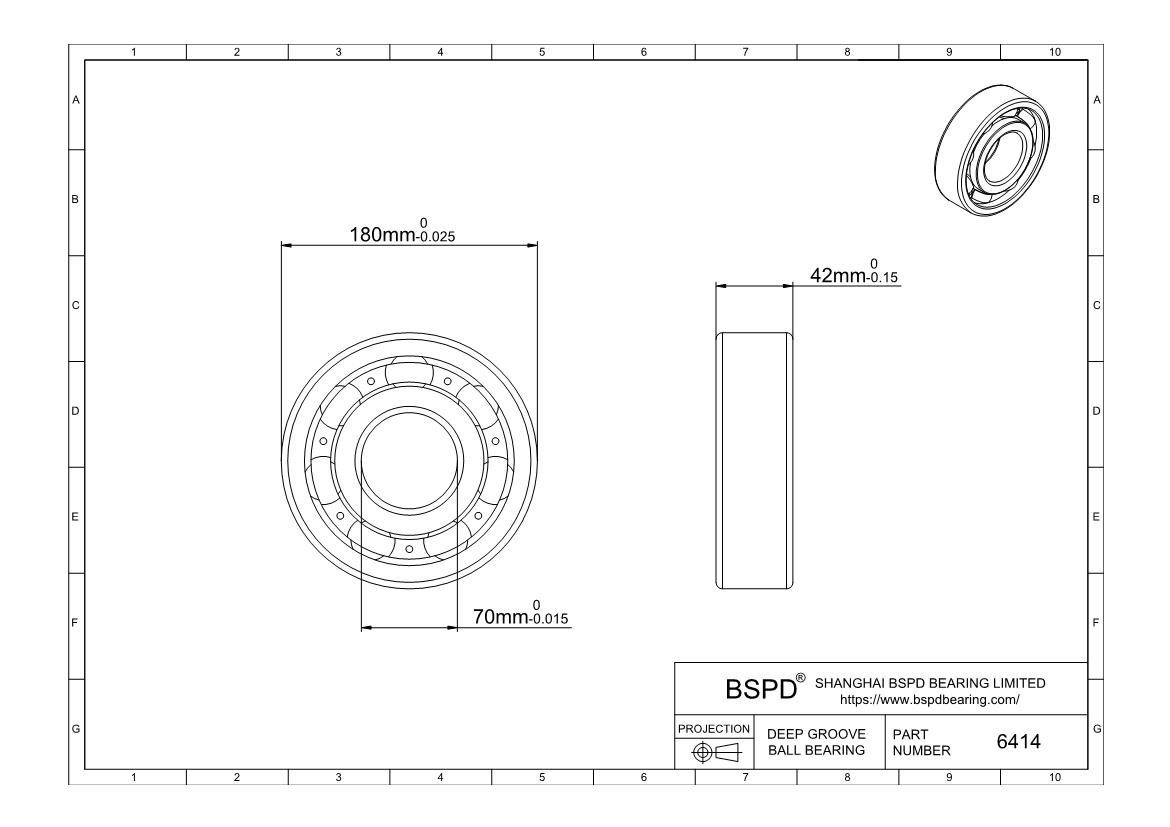

Dimensions: Bore (Inner) Diameter: 70 mm; Outer Diameter: 180 mm; Width (Thickness): 42 mm;

6414
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 6414
For Shaft Diameter 70 mm
Bore Dia (d) 70 mm
Bore Dia Tolerance -0.015mm to 0
For Housing ID 180mm
Outer Dia (D) 180mm
Outer Dia Tolerance -0.025mm to 0
Width (B) 42mm
Width Tolerance -0.150mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 143000
Static Load Rating (Cor) (Newtons) 104000
Max Speed (Grease) (X1000 RPM) 3.8
Max Speed (Oil) (X1000 RPM)  4.5
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.01mm to 0.03mm
RoHS Compliant
Ball Qty
Ball Dia
Weight (grams) 4850
6414
