6707-2RS 67 68 69 Series Thin Section Bearings

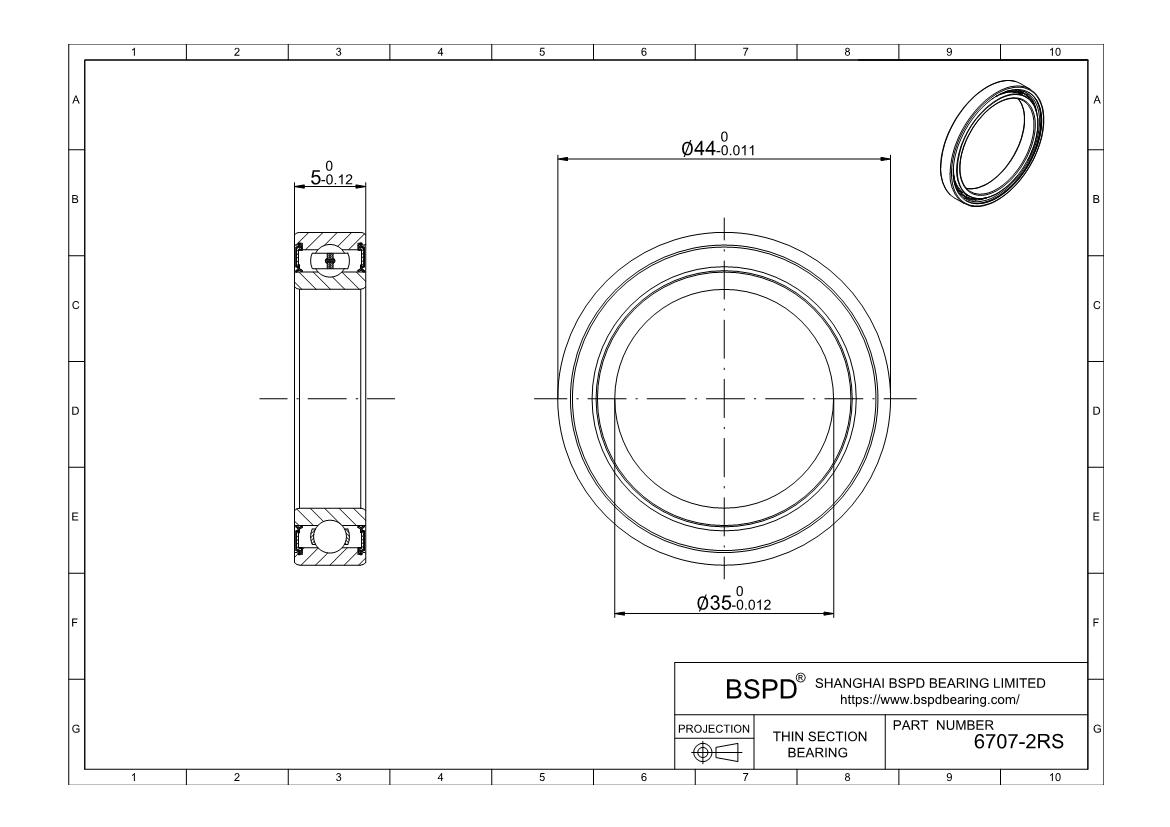

Dimensions: Bore (Inner) Diameter: 35 mm; Outer Diameter: 44 mm; Width (Thickness): 5 mm;

6707-2RS
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Part Number 6707 2rs
For Shaft Diameter 35mm
Bore Dia (d) 35mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 44mm
Outer Dia (D) 44mm
Outer Dia Tolerance -0.011mm to 0
Width (B) 5mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 1860
Static Load Rating (Cor) (Newtons) 1630
Max Speed (Grease) (X1000 RPM) 4.9
Max Speed (Oil) (X1000 RPM) 2 6
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Weight (grams) 15
6707-2RS
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Thin Section Bearings 6707-2RS ? 67 68 69 Series Thin Section Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
