6808 67 68 69 Series Thin Section Bearings

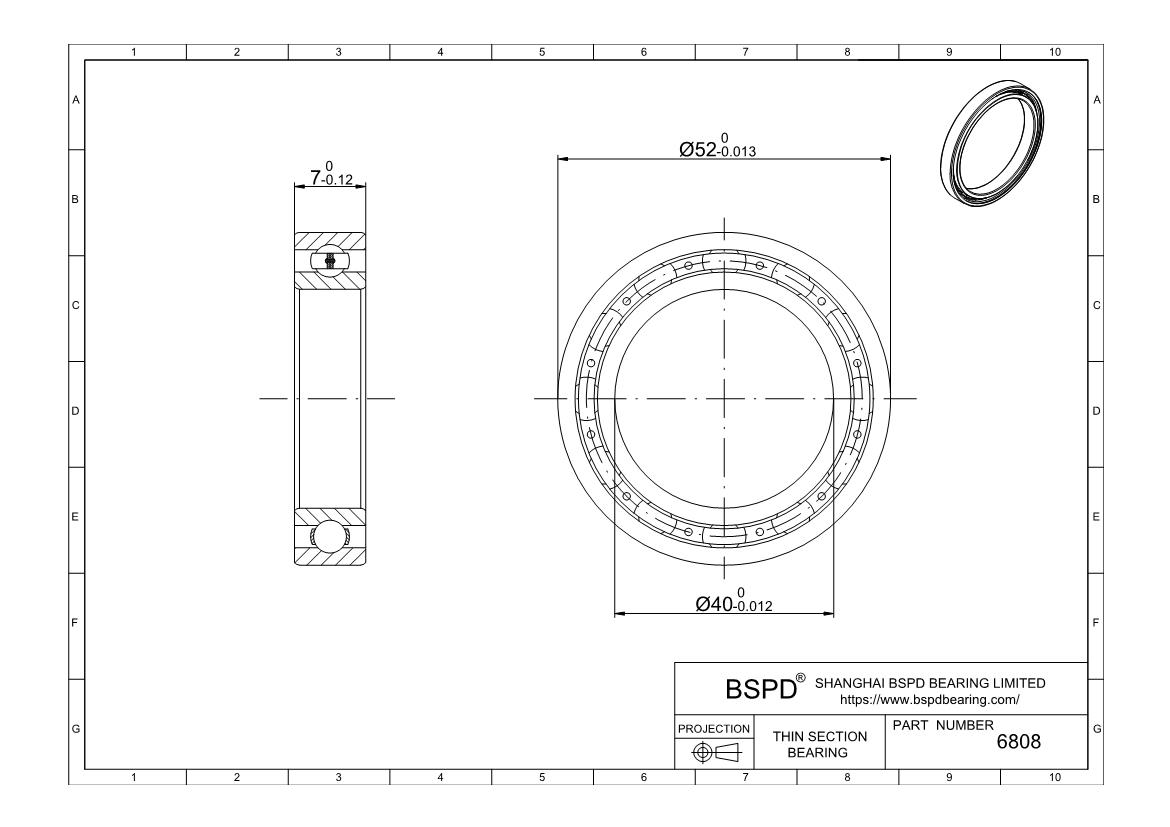

Dimensions: Bore (Inner) Diameter: 40 mm; Outer Diameter: 52 mm; Width (Thickness): 7 mm;

6808
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 6808
For Shaft Diameter 40mm
Bore Dia (d) 40mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 52mm
Outer Dia (D) 52mm
Outer Dia Tolerance -0.013mm to 0
Width (B) 7mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 4930
Static Load Rating (Cor) (Newtons) 4180
Max Speed (Grease) (X1000 RPM) 12
Max Speed (Oil) (X1000 RPM) 2 14
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Weight (grams) 35
6808
