7020 ACE/P4A High Speed Angular Contact Ball Bearings

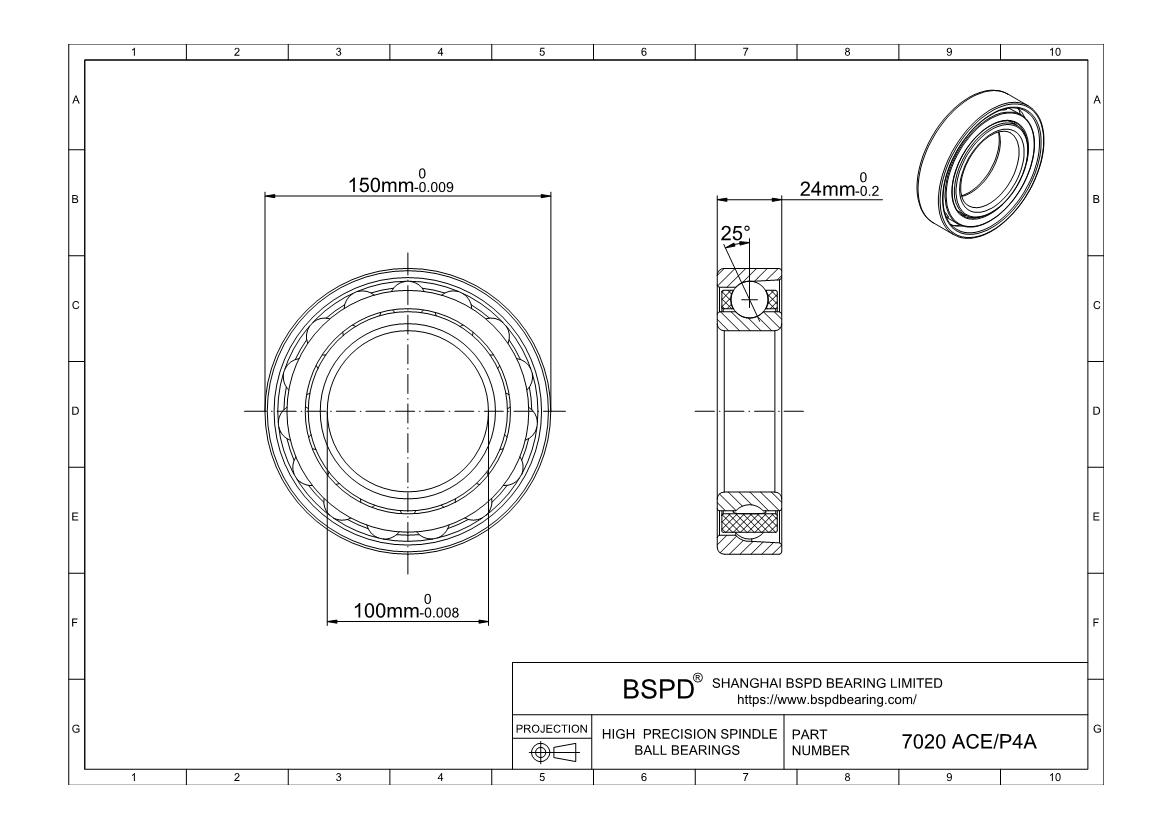

Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 150 mm； Width (Thickness): 24 mm;

7020 ACE/P4A
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Combined Radial and Thrust
Single Row/Double Row Single
Seal Type Open
Precision Rating P4 (ABEC-7)
Contact Angle 25
Part Number 7020 ACE/P4A
NSK Code 7020A5TRP4
Arrangement DB Set of two bearings arranged back-to-back
DF Set of two bearings arranged face-to-face >
DT Set of two bearings arranged in tandem
DG Set of two bearings for universal matching
Bore Dia (d) 100 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia (D) 150 mm
Outer Dia Tolerance -0.009mm to 0
Width (B) 24 mm
Width Tolerance -0.2mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Polyamide
Dynamic Load Rating (Cr) (KN) 42.3
Static Load Rating (Cor) (KN) 38
Max Speed (Grease) (RPM) 11200
Max Speed (Oil) (RPM) 17500
Preload Extra Light Preload
Light Preload
Medium Preload
Heavy Preload
Special Preload
Special Axial Clearance
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Weight (grams) 1260
RoHS Compliant
7020 ACE/P4A
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
