71830 CD/HCP4 High Speed Angular Contact Ball Bearings

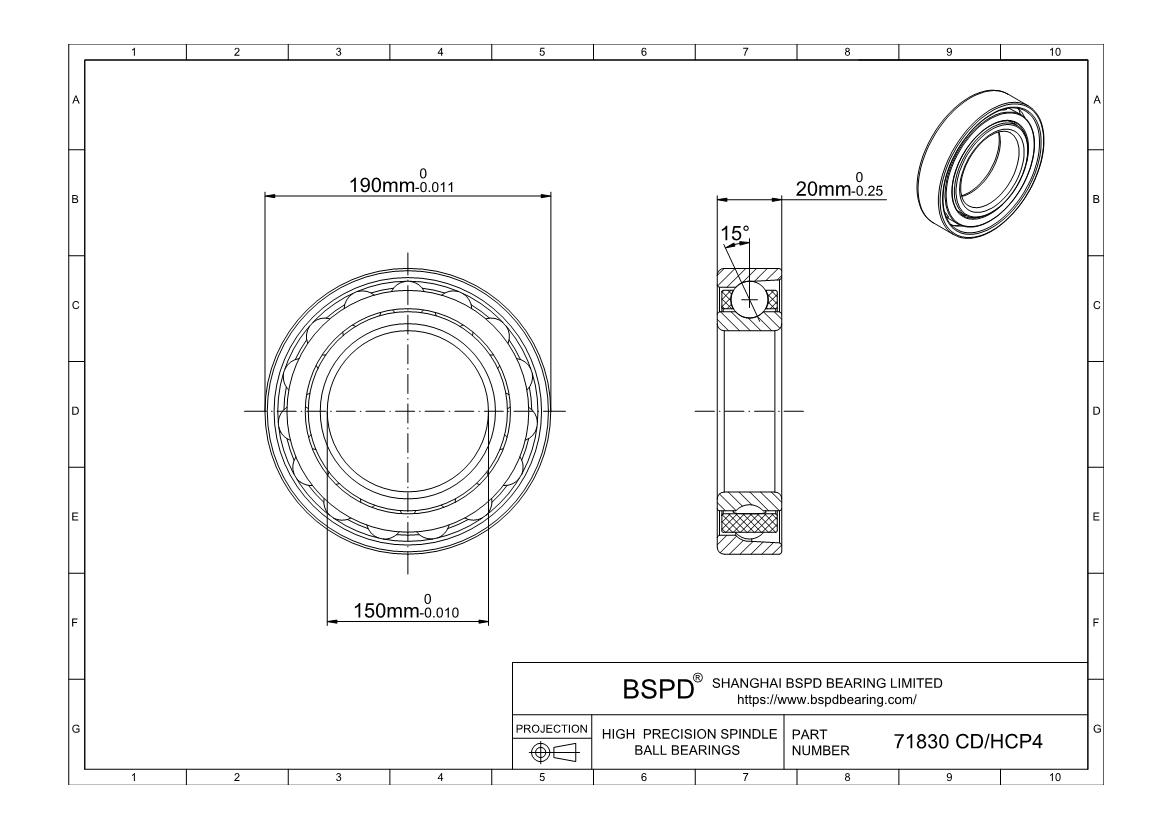

Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 190 mm； Width (Thickness): 20 mm;

71830 CD/HCP4
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Combined Radial and Thrust
Single Row/Double Row Single
Seal Type Open
Precision Rating P4 (ABEC-7)
Contact Angle 15
Part Number 71830 CD/HCP4
NSK Code 7830CSN24TRP4
Arrangement DB Set of two bearings arranged back-to-back
DF Set of two bearings arranged face-to-face >
DT Set of two bearings arranged in tandem
DG Set of two bearings for universal matching
Bore Dia (d) 150 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia (D) 190 mm
Outer Dia Tolerance -0.011mm to 0
Width (B) 20 mm
Width Tolerance -0.25mm to 0
Ring Material 52100 Chrome steel
Ball Material Ceramic Ball Si3N4
Cage Material Polyamide
Dynamic Load Rating (Cr) (KN) 52
Static Load Rating (Cor) (KN) 72
Max Speed (Grease) (RPM) 7000
Max Speed (Oil) (RPM) 11000
Preload Extra Light Preload
Light Preload
Medium Preload
Heavy Preload
Special Preload
Special Axial Clearance
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Weight (grams) 980
RoHS Compliant
71830 CD/HCP4
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
