7311BEAT85 Single Row Angular Contact Ball Bearings

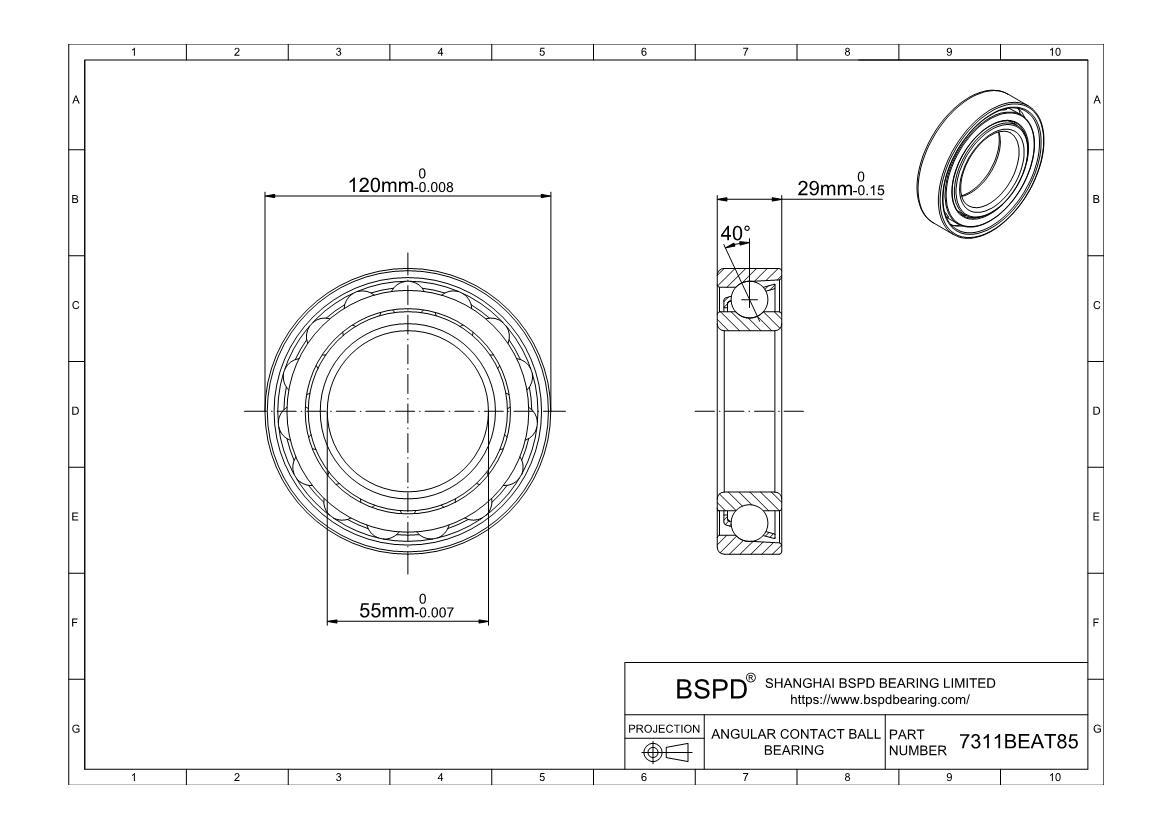

Dimensions: Bore (Inner) Diameter: 55 mm; Outer Diameter: 120 mm; Width (Thickness): 29 mm;

7311BEAT85
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Combined Radial and Thrust
Construction One
Single Row/Double Row Single
Seal Type Open
Precision Rating P4 (ABEC-7)
Contact Angle 40
Part Number 7311BEAT85
Bore Dia (d) 55 mm
Bore Dia Tolerance -0.007mm to 0
Outer Dia (D) 120 mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 29 mm
Width Tolerance -0.15mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material TYN (ball guided polyamide resin cage)
TR (outer ring guided polyamide resin cage)
W ( steel plate punching)
T85 (polyamide 46 resin)
Dynamic Load Rating (Cr) (KN) 89
Static Load Rating (Cor) (KN) 58.5
Max Speed (Grease) (RPM) 5000
Max Speed (Oil) (RPM)  7500
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Mass(Kg) 1.36
RoHS Compliant
7311BEAT85
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Angular Contact Ball Bearings 7311BEAT85 ? Single Row Angular Contact Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
