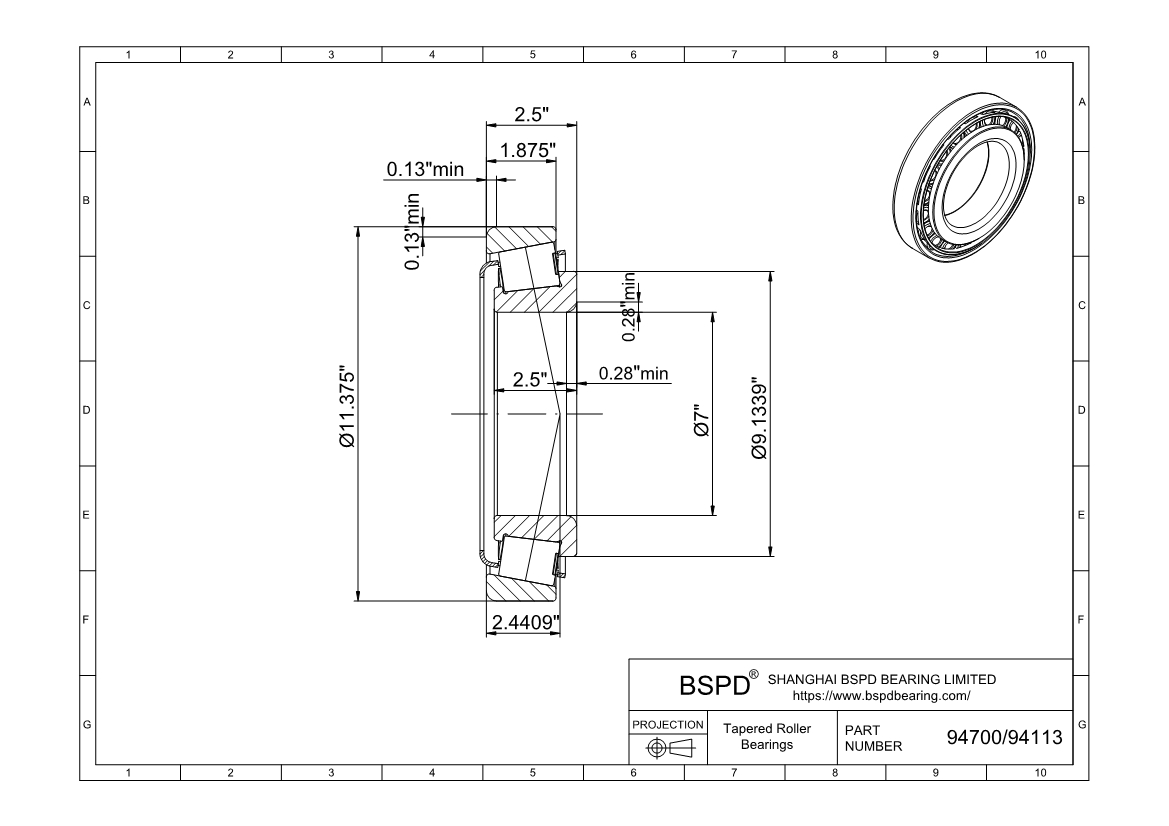

94700/94113
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 7.0000 "； Outer Diameter: 11.3750 "； Width (Thickness): 2.5000 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | 94700/94113 |
| Bore diameter | 7.0000 " |
| Outside diameter | 11.3750 " |
| Total width | 2.5000 " |
| Shoulder diameter of inner ring | 9.1339 " |
| Widthof inner ring | 2.5000 " |
| Width of outer ring | 1.8750 " |
| Chamfer minimum dimension of inner ring (r1,2) | 7 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 62 |
| Basic dynamic load rating (Cr) | 774 |
| Basic static load rating (Cor) | 1140 |
| Fatigue load limit (Pu) | 108 |
| Reference speed | 1700 r/min |
| Limiting speed | 2000 r/min |
| Mass | 16 kg |
| Limiting value (e) | 0.46 |
| Axial load factor (Y) | 1.3 |
| Axial load factor (Y0) | 0.7 |
| Maximum diameter of shaft abutment (da) | 201 mm |
| Minimum diameter of shaft abutment (db) | 201 mm |
| Minimum diameter of housing abutment (Da) | 247 mm |
| Maximum diameter of housing abutment (Da) | 274 mm |
| Minimum diameter of housing abutment (Db) | 270 mm |
| Minimum width of space required in housing on large side face (C | 10 mm |
| Minimum width of space required in housing on small side face (C | 15.5 mm |
| Maximum Radius of shaft fillet (ra) | 7 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
