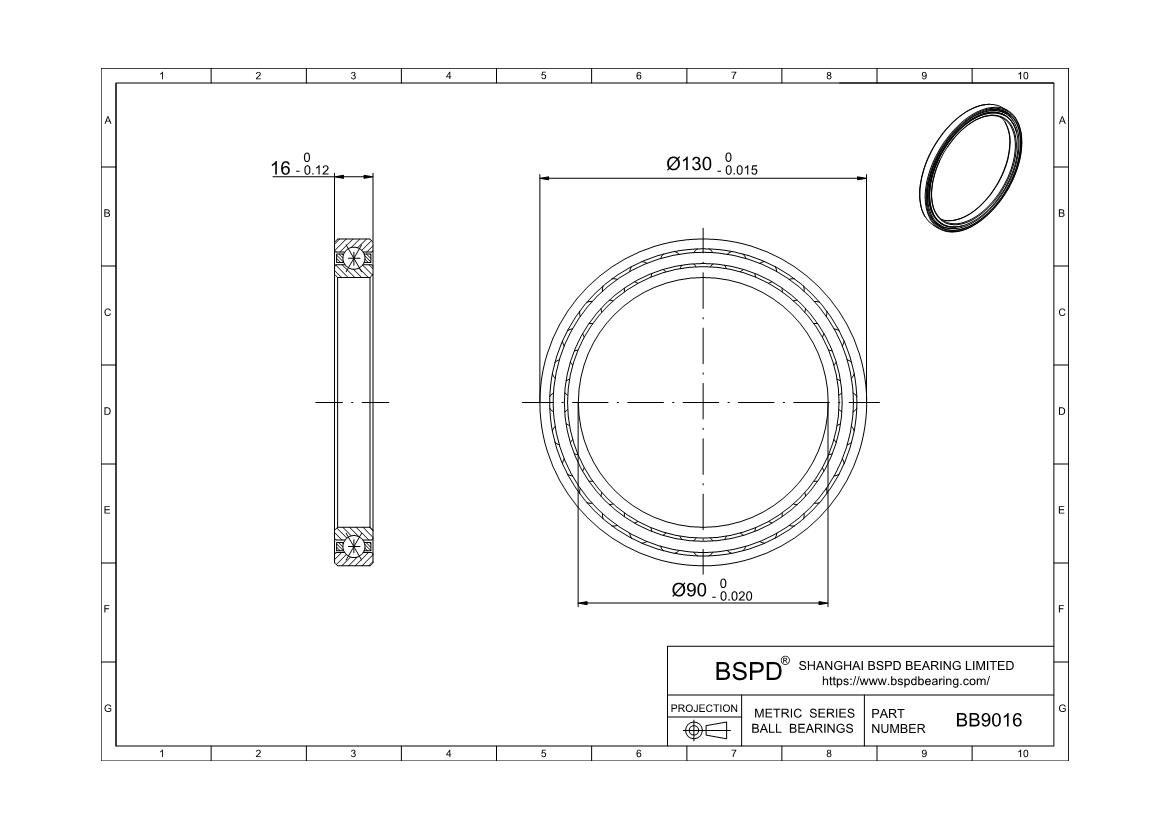

BB9016
BB Series Metric Ball Bearings
Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 130 mm； Width (Thickness): 16 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Seal Type | Open | |
| Part Number | BB9016 | |
| Kaydon Number | 39326001 | |
| Weight (kg) | 0.73 | |
| Bore Dia (d) | 90 | |
| Bore Dia Tolerance | -0.02 | |
| Outer Dia (D) | 130 | |
| Outer Dia Tolerance | -0.015 | |
| Width (B) | 16 | |
| Width Tolerance | -0.12 | |
| R | 1.5 | |
| Dynamic (lbs) | Radial | 17387 |
| axial | 25340 | |
| Moment | 718 | |
| Standard Diametral Clearance | 0.041-0.066 | |
| Radial and Axial Runout ?Inner | 0.015 | |
| Radial and Axial Runout Outer | 0.015 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings BB9016 ? BB Series Metric Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
