CRBFV11528A Crossed Roller TYPE

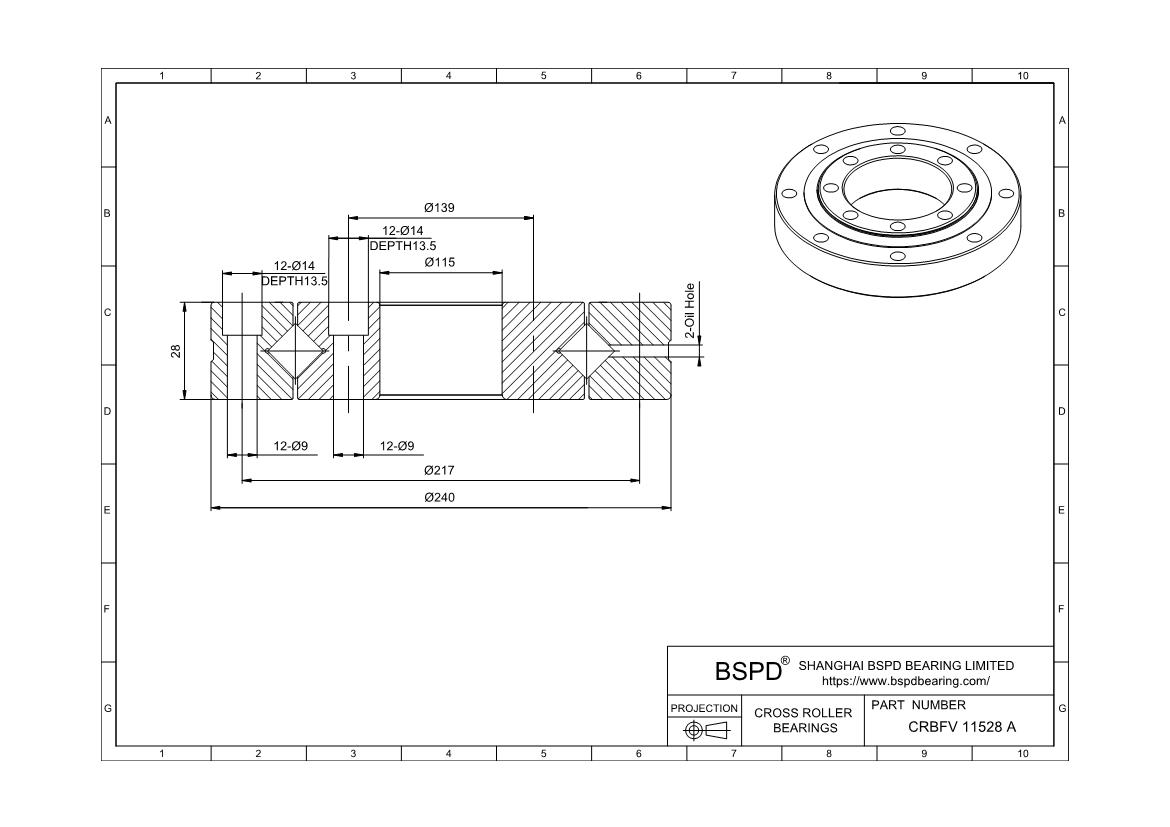

Dimensions: Bore (Inner) Diameter: 115 mm； Outer Diameter: 240 mm； Width (Thickness): 28 mm;

CRBFV11528A
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRBFV11528A
THK Part Number
Bearing Type Crossed Roller
Construction Single Row
Seal Type Open
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm 115
Mass(kg) 6.63
Bore Dia (d) 115
Outer Dia (D) 240
Width (B) 28
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN 84.3
Basic load rating (radial)Co kN 138
Inner ring PCD1 139
Inner ring Mounting hole 12- φ 9 through φ 14 counter bore depth 13.5
Outer ring PCD2 217
Outer ring Mounting hole 12-φ9 through φ14 counter bore depth 13.5
CRBFV11528A
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
