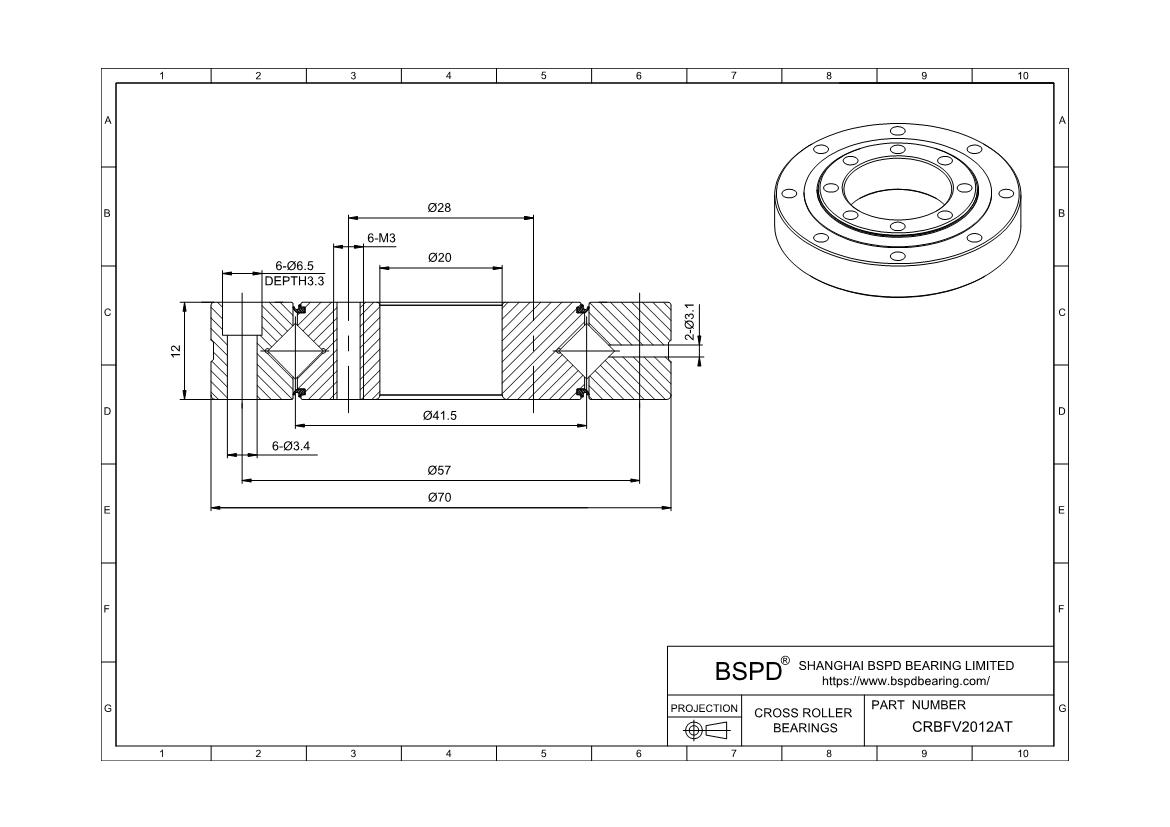

CRBFV2012ATUU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 20 mm; Outer Diameter: 70 mm; Width (Thickness): 12 mm;

CRBFV2012ATUU
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRBFV2012ATUU
THK Part Number RU42UU
Bearing Type Crossed Roller
Construction Single Row
Seal Type Sealed
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm 20
Mass(kg) 0.31
Bore Dia (d) 20
Outer Dia (D) 70
Width (B) 12
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN 7.35
Basic load rating (radial)Co kN 8.35
Inner ring PCD1 28
Inner ring Mounting hole 6-M3 through
Outer ring PCD2 57
Outer ring Mounting hole 6-φ3.4 through φ6.5 counter bore depth 3.3
CRBFV2012ATUU
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBFV2012ATUU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
