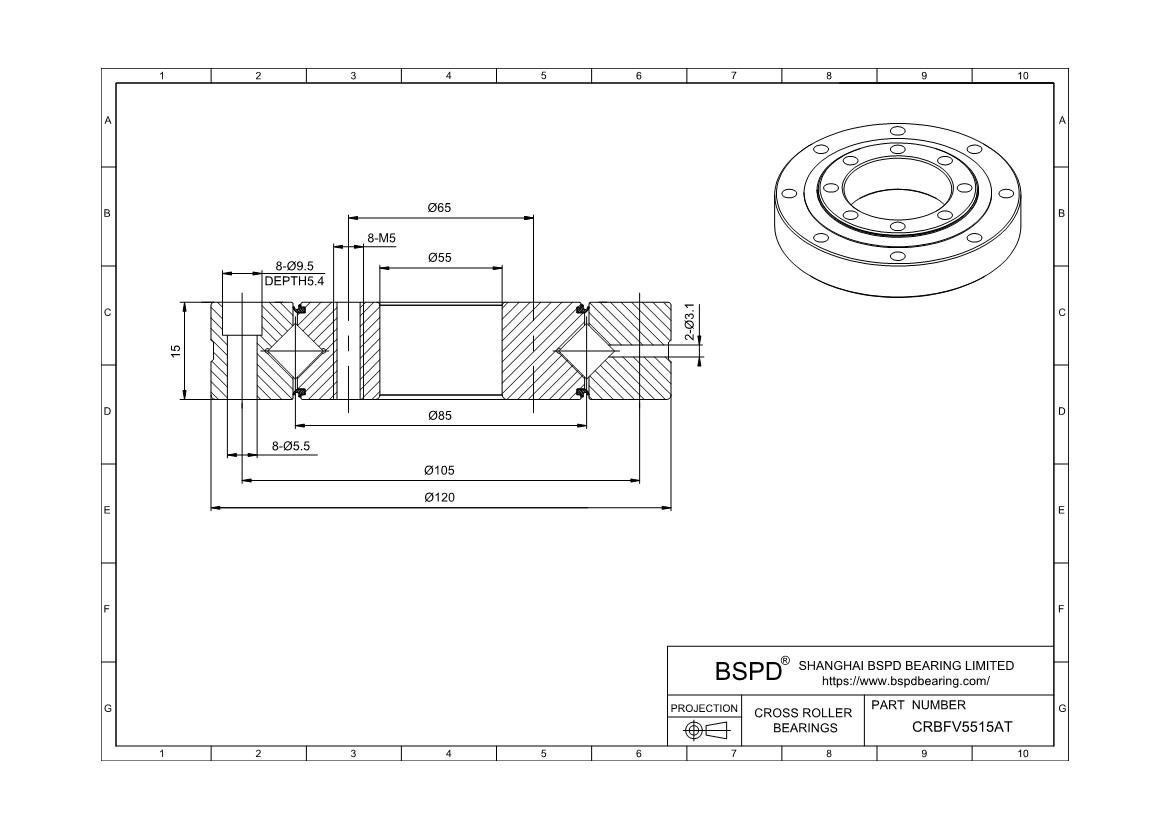

CRBFV5515ATUU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 55 mm; Outer Diameter: 120 mm; Width (Thickness): 15 mm;

CRBFV5515ATUU
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRBFV5515ATUU
THK Part Number RU85UU
Bearing Type Crossed Roller
Construction Single Row
Seal Type Sealed
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm 55
Mass(kg) 1
Bore Dia (d) 55
Outer Dia (D) 120
Width (B) 15
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN 20.3
Basic load rating (radial)Co kN 29.5
Inner ring PCD1 65
Inner ring Mounting hole 8-M5 through
Outer ring PCD2 105
Outer ring Mounting hole 8-φ5.5 through φ9.5 counter bore depth 5.4
CRBFV5515ATUU
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
