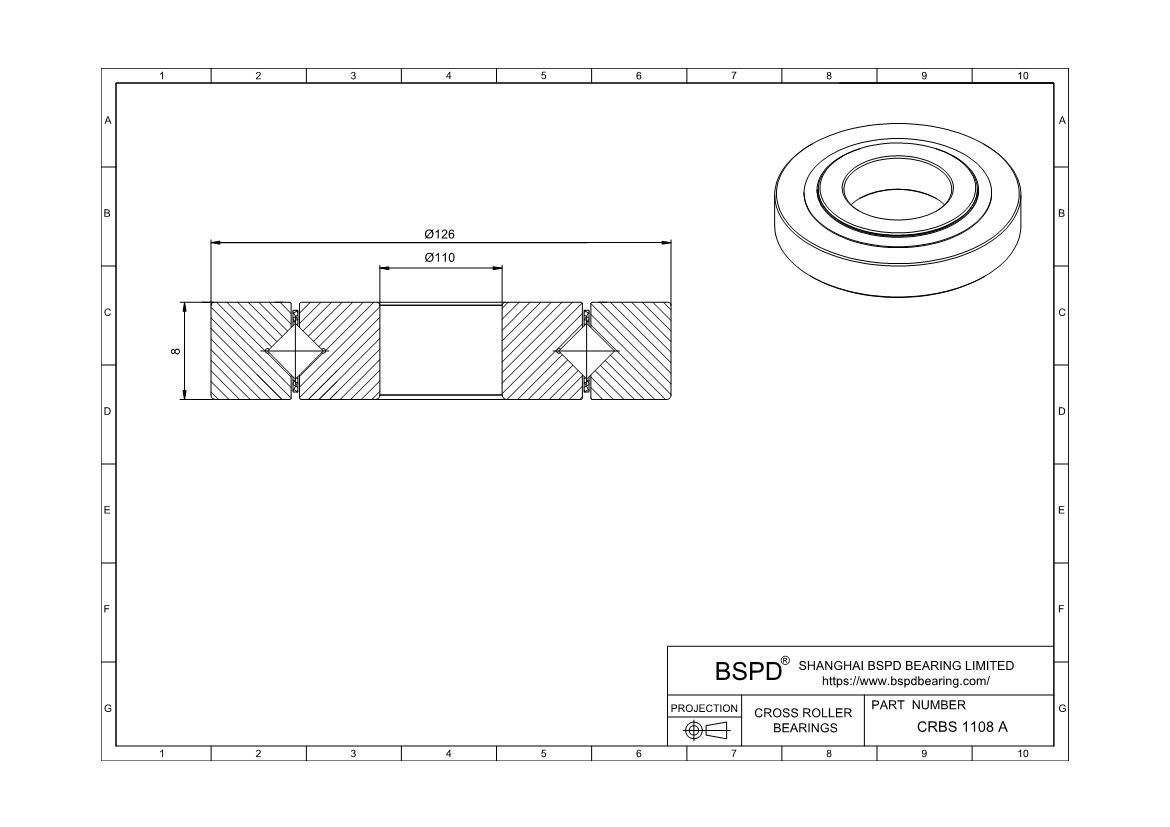

CRBS1108AUU
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 110 mm； Outer Diameter: 126 mm； Width (Thickness): 8 mm;
REQUEST FOR QUOTE
Crossed Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Part Number | CRBS1108AUU |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Sealed |
| Separator | With Separator |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 110 |
| Mass(kg) | 0.163 |
| Bore Dia (d) | 110 |
| Outer Dia (D) | 126 |
| Width (B) | 8 |
| Mounting dimensions(da) | 114 |
| Mounting dimensions(Da) | 121 |
| r(min) | 0.4 |
| Basic load rating (radial)C kN | 12 .300 |
| Basic load rating (radial)Co kN | 10.300 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBS1108AUU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
