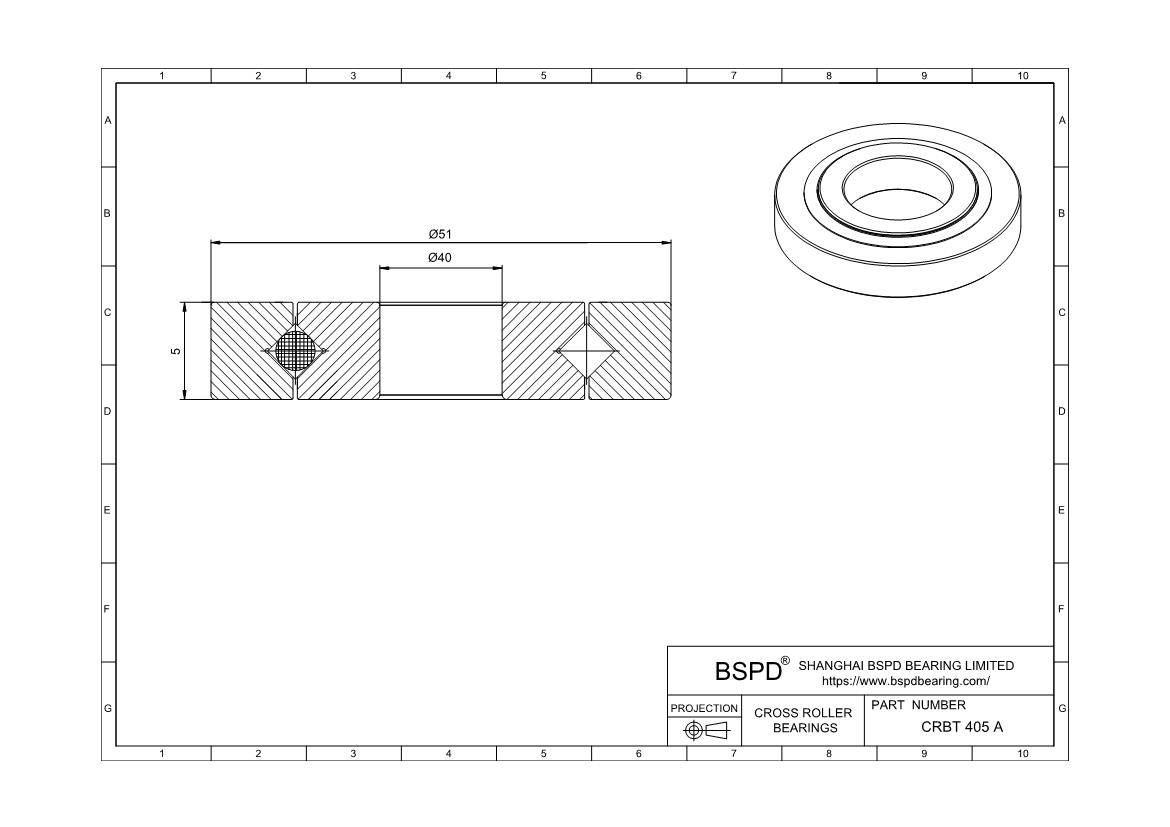

CRBT405A
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 51 mm； Width (Thickness): 5 mm;
REQUEST FOR QUOTE
Crossed Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Part Number | CRBT405A |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Open |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 40 |
| Mass(kg) | 0.0265 |
| Bore Dia (d) | 40 |
| Outer Dia (D) | 51 |
| Width (B) | 5 |
| Mounting dimensions(da) | 42.5 |
| Mounting dimensions(Da) | 47 |
| r(min) | 0.15 |
| Basic load rating (radial)C kN | 2 000 |
| Basic load rating (radial)Co kN | 2 520 |
Print PDF
Request a 3D CAD Model
