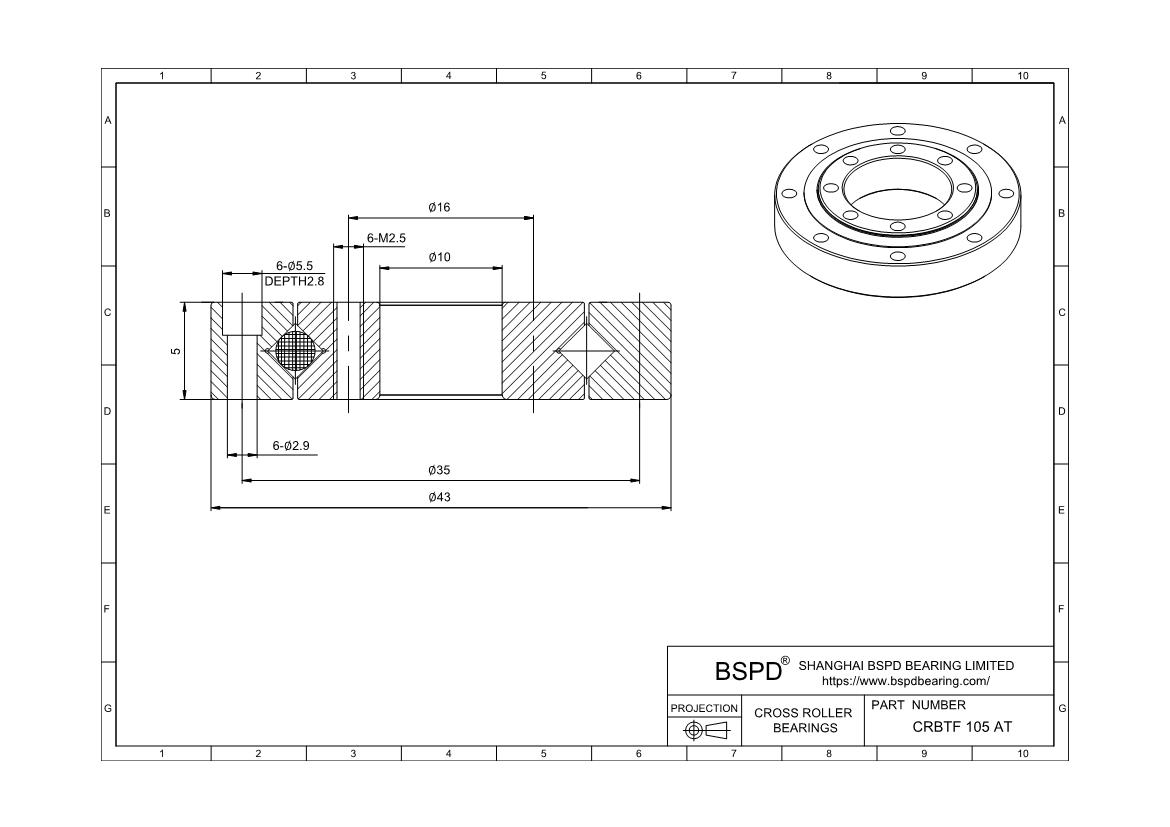

CRBTF105AT
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 10 mm； Outer Diameter: 43 mm； Width (Thickness): 5 mm;
REQUEST FOR QUOTE
Crossed Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Part Number | CRBTF105AT |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Open |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 10 |
| Mass(kg) | 0.046 |
| Bore Dia (d) | 10 |
| Outer Dia (D) | 43 |
| Width (B) | 5 |
| Mounting dimensions(da) | 21.5 |
| Mounting dimensions(Da) | 28 |
| r(min) | 0.15 |
| Basic load rating (radial)C kN | 1 500 |
| Basic load rating (radial)Co kN | 1 410 |
| Inner ring PCD1 | 16 |
| Inner ring Mounting hole | 6-M2.5 through |
| Outer ring PCD2 | 35 |
| Outer ring Mounting hole | 6-φ2.9 through φ5.5 counter bore depth 2.8 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBTF105AT ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
