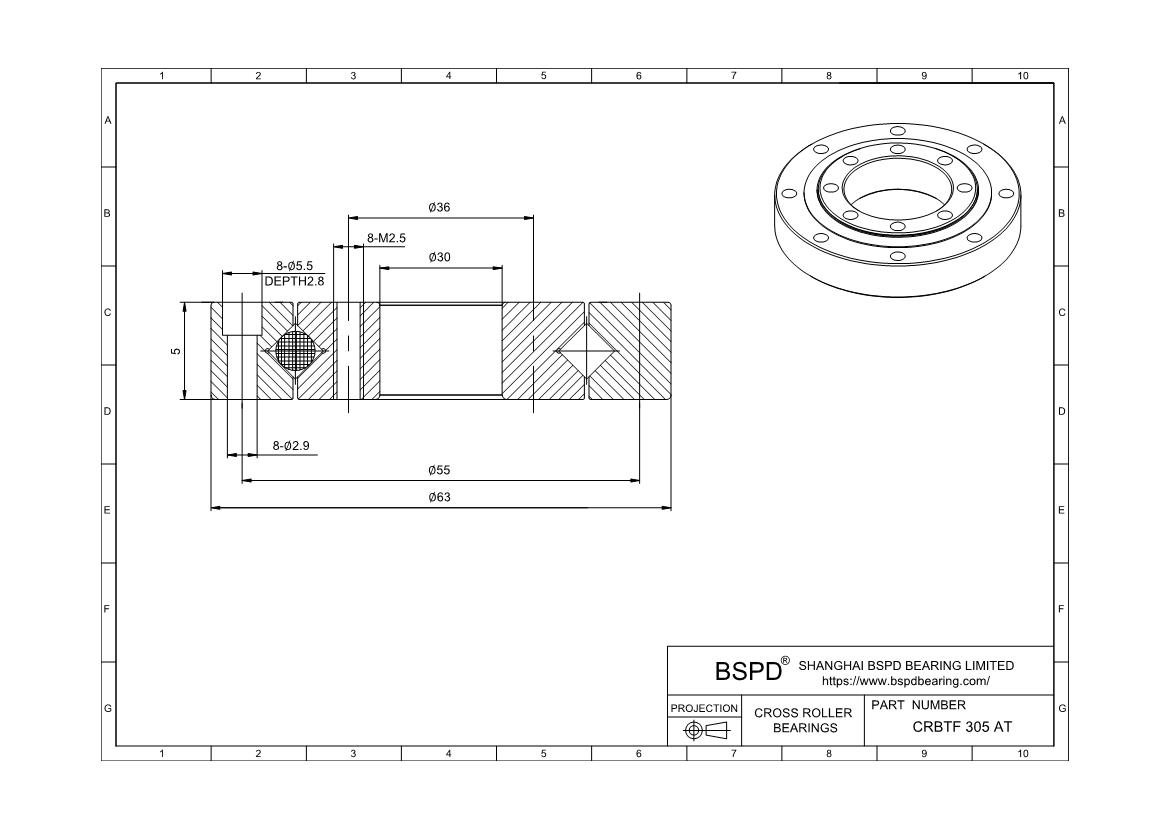

CRBTF305AT
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 30 mm； Outer Diameter: 63 mm； Width (Thickness): 5 mm;
REQUEST FOR QUOTE
Crossed Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Part Number | CRBTF305AT |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Open |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 30 |
| Mass(kg) | 0.083 |
| Bore Dia (d) | 30 |
| Outer Dia (D) | 63 |
| Width (B) | 5 |
| Mounting dimensions(da) | 41.5 |
| Mounting dimensions(Da) | 47.5 |
| r(min) | 0.15 |
| Basic load rating (radial)C kN | 2 140 |
| Basic load rating (radial)Co kN | 2 750 |
| Inner ring PCD1 | 36 |
| Inner ring Mounting hole | 8-M2.5 through |
| Outer ring PCD2 | 55 |
| Outer ring Mounting hole | 8-φ2.9 through φ5.5 counter bore depth 2.8 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBTF305AT ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
